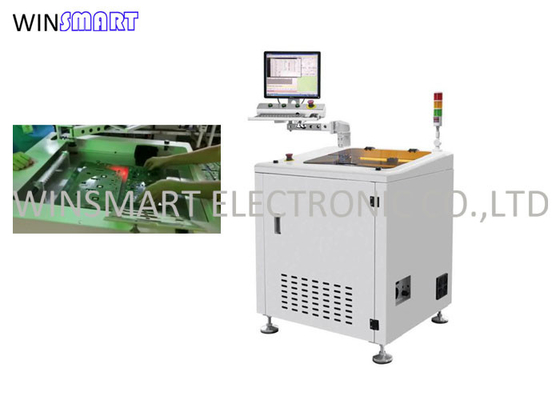

Bottom Cutting Stable PCB Router Machine 410x460mm PCB Milling Machine

Description
PCB Conection: Milling Joints PCB Thickness: 0.4-3.5mm
Spindle: SycoTec 60000RPM Cutting Precision: ±0.05mm
Single Table: 410x460mm Name: PCB Milling Machine
High Light:

Bottom Cutting PCB Router Machine

,

Stable PCB Router Machine

,

410x460mm PCB Milling Machine

Bottom Cutting Stable PCB Router Machine, 410x460mm PCB Milling Machine​





PCB Milling Machine Introduction:

In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.



PCB Milling Machine Application:

Used for routed PCB panel singulation with lower stress in many industries.



PCB Milling Machine Features:

This machine is optional single/dual platform, for max panel dimension 410*460mm. It has PC and CCD system for precise cutting, easy for programs. It is flexible for different type of PCB boards with bottom dust collection without burr.



PCB Milling Machine Specification:

Model Number SMTR17
Machine Size 850(L) x 750(W) x 1455(H)mm
Voltage 380V/50Hz, 2.5KW
Max PCB Size 410x460mm (single table), 260x310mm(dual table)
PCB Thickness 0.4-5mm
Feeding Mode Manual
PCB Positioning Customized fixture
Programming Vision teaching, inline programming
Cutting Spindle SycoTec 60000rpm/min(standard)
Cooling Type Self cooling
Dust Collection Mode Bottom collection
Cutting Speed 1-100mm/s
Repeat Accuracy ±0.01mm
Routing Bit 0.8-3.0 Diameter, right rotation
Repeat Accuracy ±0.02mm
Control System Industrial PC
Spindle Germany SycoTec 4015HY
Motion Control 4 axis motion control board
Lead screw C5 grinding screw lead
Camera Germany imaging 40W greay camera
LCD 17 inch
