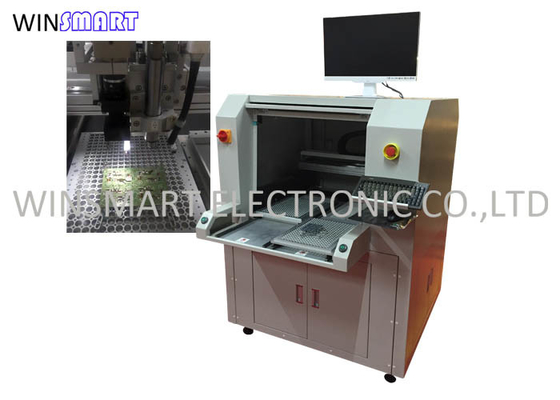

Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router

Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router
Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router

Large Image :  Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router

Working Station: 2 PCB Connection: Milling Joints
PCB Thickness: 0.8-3.0mm Application: Tab PCBA Panel
Cutting Precision: ±0.05mm Max PCB Size: 300x350mm(Could Be Customized Made)
Routing Bit: Dia 0.8-2.5mm Warranty: 2 Years
On-site Installation: Yes Product Name: Semi Auto PCB Router Machine
High Light:

60000RPM Spindle PCB Depaneling Machine


Semi Auto PCB Depaneling Machine


CE Approval Semi Auto PCB Router

60000RPM Spindle PCB Depaneling Machine, CE Approval Semi-auto PCB Router



Semi Auto PCB Router Machine Description:

This machine is a semi-automatic PCB router designed for efficient and precise PCB depaneling. It features dual tables, allowing for continuous operation and increased productivity. This machine is built with high-quality components and has received CE approval, ensuring compliance with safety and quality standards. It is an ideal choice for small to medium-scale PCB manufacturing environments.

Economic PCB Depaneling Machine CE Approval Semi Auto PCB Router 0


Semi Auto PCB Router Machine Function:

PCB router depanel with high precision controlling system can move quickly for cutting or separate the PCB printed circuit board,increase productivity while maintaining high accuracy.

It is widely used in the Manufacturing Machinery Electronic Products Machinery industry.


Semi Auto PCB Router Machine Specification:

Router Machine
X/Y Cutting Speed 0 ~100mm/s
Repeatability precision ± 0.01mm
X/Y1/Y2/Z control mode Industrial IPC and PC
X/Y1/Y2/Z driven mode AC Servo Motor
Operation and data storage PC
Cutting Precision ± 0.05mm
Spindle Speed 60000rpm(Germany KKAVO)
Power Supply 220V/110V
Air Pressure 4.5kg/cm 2
Power Rate 1.8KW
Vacuum Cleaner
Mode Up or Bottom
Power Supply 380V
Up Cleaner Dimension L650*W400*H1350mm
Bottom Cleaner Dimension L665*W635*H1650mm


Dual Table PCB Router Machine Features:

  1. Dual Table Design: The machine is equipped with two working tables, enabling parallel operation. While one table is being loaded or unloaded, the other table can continue the cutting process, minimizing downtime and maximizing productivity.
  2. Semi-Automatic Operation: The machine combines manual loading and unloading of PCBs with automated cutting, providing a balance between operator control and machine efficiency.
  3. CE Approval: The machine has obtained CE approval, indicating compliance with European safety and quality standards. This certification ensures that the machine meets stringent requirements for operator safety and product reliability.
  4. Precision Cutting: The machine utilizes a high-precision cutting mechanism to achieve accurate and clean cuts, minimizing the risk of damage to PCBs and ensuring high-quality results.
  5. Adjustable Cutting Parameters: The machine allows for adjustable cutting parameters, such as cutting speed and depth, to accommodate different PCB materials and thicknesses, providing flexibility in the depaneling process.
  6. Easy-to-Use Interface: The machine features an intuitive and user-friendly interface, making it easy for operators to control and adjust cutting settings as needed.
  7. Sturdy Construction: The machine is constructed with durable materials to withstand continuous operation in demanding manufacturing environments, ensuring long-term reliability and stability.

Dual Table PCB Router Machine Advantages:

  1. Increased Productivity: The dual table design enables continuous operation, reducing downtime and boosting productivity by eliminating the need for manual table changes.
  2. Cost Efficiency: The semi-automatic operation optimizes labor utilization and reduces manual effort, resulting in cost savings for PCB manufacturing companies.
  3. Enhanced Safety: The CE approval signifies that the machine meets essential safety requirements, providing peace of mind and ensuring the safety of operators.
  4. Improved Quality: The precision cutting mechanism and adjustable parameters enable high-quality cuts, minimizing PCB damage and enhancing the overall product quality.
  5. Flexibility: The machine's adjustable cutting parameters and compatibility with various PCB sizes and materials allow for versatility in depaneling different types of PCBs.
  6. User-Friendly: The easy-to-use interface simplifies machine operation and reduces the learning curve for operators, improving efficiency and reducing the chance of errors.

Dual Table PCB Router Machine Application:

This PCB router machine can be widely used in the electronic manufacturing industry. Its main applications include:

1. PCB production: Machines can efficiently cut large PCB boards into small pieces to meet the needs of mass production.

2. Electronic assembly: In the assembly process of electronic products, the machine is used to divide the PCB board into separate circuit boards for subsequent assembly and welding.

3. Prototyping: For the production of electronic product prototypes, machines can quickly and accurately cut PCB boards, providing support for prototype development.

4. Small batch production: For small-scale electronic product production, machines provide efficient board splitting solutions, saving labor and time costs.
