Product Details:
|
| Working Station: | 2 | PCB Connection: | Milling Joints |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Application: | Tab PCBA Panel |
| Cutting Precision: | ±0.05mm | Max PCB Size: | 300x350mm(Could Be Customized Made) |
| Routing Bit: | Dia 0.8-2.5mm | Warranty: | 2 Years |
| On-site Installation: | Yes | Product Name: | PCB Depaneling Machine |
| High Light: | 60000RPM Spindle PCB Depaneling Machine,Semi Auto PCB Depaneling Machine,CE Approval Semi Auto PCB Router |
||

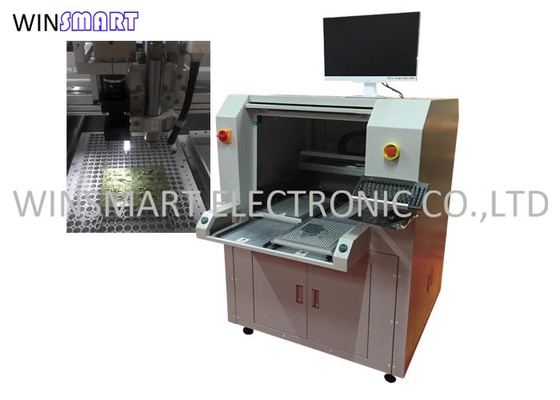

60000RPM Spindle PCB Depaneling Machine, CE Approval Semi-auto PCB Router
PCB Depaneling Machine Description:
In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
PCB Depaneling Machine Function:
PCB router depanel with high precision controlling system can move quickly for cutting or separate the PCB printed circuit board,increase productivity while maintaining high accuracy.
It is widely used in the Manufacturing Machinery Electronic Products Machinery industry.
PCB Depaneling Machine Specification:
| Router Machine | |
| X/Y Cutting Speed | 0 ~100mm/s |
| Repeatability precision | ± 0.01mm |
| X/Y1/Y2/Z control mode | Industrial IPC and PC |
| X/Y1/Y2/Z driven mode | AC Servo Motor |
| Operation and data storage | PC |
| Cutting Precision | ± 0.05mm |
| Spindle Speed | 60000rpm(Germany KKAVO) |
| Power Supply | 220V/110V |
| Air Pressure | 4.5kg/cm 2 |
| Power Rate | 1.8KW |
| Vacuum Cleaner | |
| Mode | Up or Bottom |
| Power Supply | 380V |
| Up Cleaner Dimension | L650*W400*H1350mm |
| Bottom Cleaner Dimension | L665*W635*H1650mm |
PCB Depaneling Machine System Parts:
Vacuum cleaner
Routing spindle
4 aix step motor and driving system
Milling cutter 10pcs
