| PCB Material: | FR4, MCPCB | Driven: | Motor |
|---|---|---|---|
| Cutting Length: | 400-1200mm | Cutting Speed: | Adjustable |
| Optional: | Conveyor For PCB Collection | Name: | Economic Aluminum PCB Separator |
| High Light: | FR4 Aluminum PCB Separator Machine,1200mm PCB Separator Machine,Adjustable Automatic Pcb Depaneling Cutter |
||

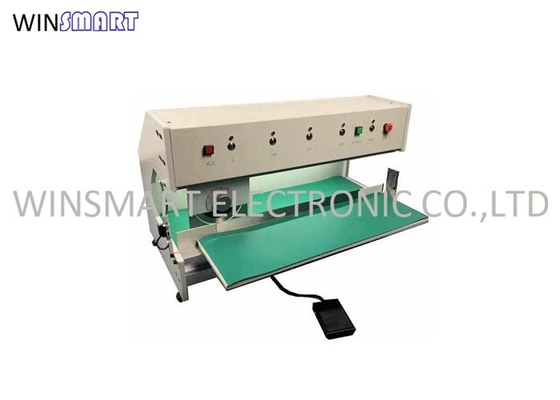

400-1200mm Economic Automatic FR4 and Aluminum PCB Separator Machine
Economic Automatic FR4 and Aluminum PCB Separator Machine Functions:
In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
Economic Automatic FR4 and Aluminum PCB Separator Machine Features:
1. Controlled by Micro-Computer Program, patented design, high accuracy and with good stablity.
2. Cutting Speed adjustable, have two options : 500mm/s and 300mm/s, if customer want to set other speed, we can customise for customer.
3. Separation length can be programmed: 0-100-200-300-400MM
4. Cutting Material PCB must with Pre-scored groove,
When operating, put the PCB which is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.
5. Operating Panel height is adjustable, from 0-50mm.
6. Rotary Knife adjustable : 0-2mm . in order to suit for different sickness PCB board and different depth of pre-scored V-cut.
7. For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
8. PCB Board thickness : 0.2-3.2mm, V-cut depth : 0.2-2mm. PCB Length :0-1300mm.
9. Upper circular blade and Bottom linear balde all exported steel long life blade, durable, when the blade is not sharp, can grind 7-10 times, repeated use.
Economic Automatic FR4 and Aluminum PCB Separator Machine Specifications:
| Model | SMTAD5 |
| Machine Dimension | L740*W550*H460 |
| Max Cutting Length | 400mm |
| PCB Material | FR4, MCPCB |
| Cutting Speed | 300mm/s or 500mm/s |
| PCB Thickness | 0.6-2.0mm |
| Power | 220/110V |
| Machine Weight | 60kgs |
