Product Details:
|
| Condition: | New | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Inspection Video: | Provided |
| Cutting Precision: | ±0.05mm | Testing Report: | Provided |
| Working Area: | Dual, 320x320mm | Cutting Speed: | 1-100mm/s |
| Cleaner: | Optional Top And Bottom Vacuum System | Product Name: | PCBA Milling Cutter PCB Router Machine |
| High Light: | Mobile Electronics PCB Router Machine,Automatic CCD PCB Router Machine,PCBA Milling Cutter Cutting Machine |
||

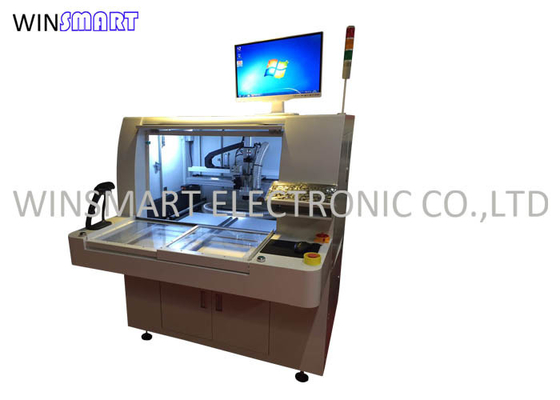

CCD Automatic PCBA Milling Cutter Cutting Machine Mobile Electronics PCB Router Machine
PCBA Milling Cutter PCB Router Machine Description:
A Depaneling router is a machine similar to wood router.
It uses a router bit to mill the material of the PCB. The hardness of the PCB material wears down the bit, which must be replaced periodically.
Routing requires that single boards are connected using tabs in a panel.
The bit mills the whole material of the tab.
It produces much dust that has to be vacuumed.
It is important for the vacuum system to be ESD safe.
Also the fixturing of the PCB must be tight - usually an aluminium jig or a vacuum holding system is used.
PCBA Milling Cutter PCB Router Machine Features:
This system has two-slide tables for high volume production. And it has lower stress to protect PCBA to ensure smooth cutting edge.
Imported motor and spindle is used for noise free purpose.
Optional top and bottom vacuum cleaning sytem is available for different clients' requirements.
High quality CCD system to ensure precise cutting.
Easy and simple programming, routing bits and cutting speed is adjustable.
PCBA Milling Cutter PCB Router Machine Specifications:
| Overall | |
| Dimensions(W*D*H) | 1250mm*1650mm*1450mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 320*320mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
PCBA Milling Cutter PCB Router Machine Applications:
It is widely used in electronic industries manufacturing, such as mobile phone, automotive electronics, household electric appliances, mobile phone, LED lighting, medical industry, etc.
