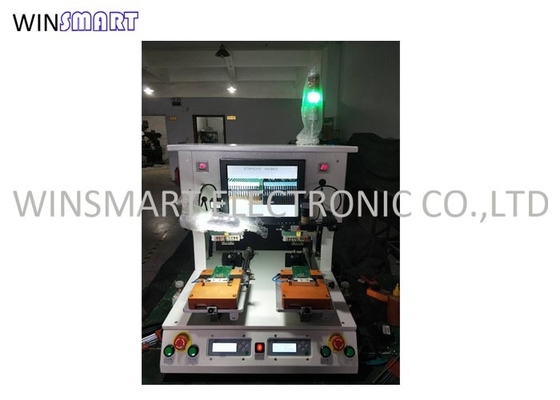

Molybdenum Alloy Thermode Head Hot Bar Welding Machine Double Station 10mm

Molybdenum Alloy Thermode Head Hot Bar Welding Machine Double Station 10mm
Molybdenum Alloy Thermode Head Hot Bar Welding Machine Double Station 10mm

Large Image :  Molybdenum Alloy Thermode Head Hot Bar Welding Machine Double Station 10mm

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTS42
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Molybdenum Alloy Thermode Head Hot Bar Welding Machine Double Station 10mm

Description
Usage: Pulse Heat Thermode Temp.: Uniform
Thermode Head: 10mm Solder Pads: Apply Solder Paste
Min Pin: 0.15mm Name: Double Station Hot Bar Welding Machine
High Light:

Thermode Head Hot Bar Welding Machine

,

Molybdenum Alloy Hot Bar Welding Machine

,

10mm Pcb Soldering Machine

10mm Molybdenum Alloy Thermode Head Double Station Hot Bar Welding Machine





Double Station Hot Bar Welding Machine Working Description:

A 2000W transformer is used to generate a large current with low voltage, which is heated rapidly through the welding joint. Pulse current refers to the on and off frequency ratio of current. The larger the pulse ratio is, the larger the current output is, and the faster the welding joint temperature rises.



Double Station Hot Bar Welding Machine Specification:

Machine size 680×780×750mm
Working area Max 200*260mm
Machine weight 135Kg
Working air pressure 0.4-0.6Mpa
Jig quantity 2
Thermode head size Max 80*5mm
Welding precision pitch 0.2mm
Pressing time 1~99.9s
Temperature settings RT~500℃ tolerance ±5℃
Welding pressure 1~20Kg
Temperature settings Two
Working environment 10-60℃,40%-95%
Power supply AC220V±10% 50HZ,2200W
Alignment mode CCD + LCD Monitor
Feeding mode Manual
Starting mode Press start button
Rotation Platform Cylinder control,tolerance<0.02mm



Double Station Hot Bar Welding Machine Advtanges:

1. Very high working efficiency, suitable for high volume production.

2. Max 10mm long thermode head for larger applications.

3. Molybdenum alloy thermode heads have uniform heating and high welding quality.

4. Customized fixtures are available for high quality soldering of different applications.

5. Imported PLC system ensures stable running.



Double Station Hot Bar Welding Machine Applications:

LCD Module, Solar Battery, Camera , Electronic Components, Coil / Inductor, Mobile Devices, PWB, Power Devices.

All where there need to be heated or fusing or joining or forming.
