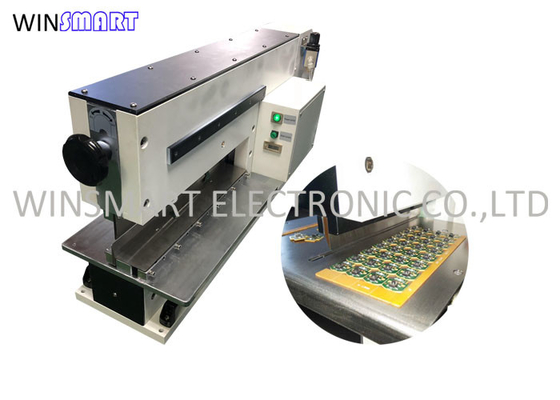

400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine

400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine
400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine

Large Image :  400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTPD2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine

Description
Max Length: 400mm PCB Thickness: 0.4-5mm
Air Source: Compressed Air 5kg/cm2 After-sale Service: Video Technical Support, Online Support
Warranty: 1 Year Type: PCB V-cut Machine Separator
High Light:

400mm PCB V Cut Machine

,

Pneumatic PCB V Cut Machine

,

PCB Separator Linear Cutting Machine

400mm PCB V-cut Machine PCB Separator Maestro Linear Cutting Machine





PCB V-cut Machine PCB Separator Features:

Rigid design without vibration in operation.
The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely.
Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.
Depaneling process without vibrations.
Easy maintenance and operation.
Pneumatic control placed in a separate unit for easier maintenance.

Customized blades and fixtures are available.



PCB V-cut Machine PCB Separator Specification:

Model SMTPD2
Machine Dimension 720x300x440mm
Max Cutting Length 330mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Condition New
Blade Material High speed steel
Customized Blade Available
Blade Re-sharpen Yes
Power 110/220V
Machine Weight 130kgs





PCB V-cut Machine PCB Separator Package and Shipping:

400mm PCB V Cut Machine PCB Separator Maestro Linear Cutting Machine 0

Package: plywood case to esnure that there is no damage during transportation.

Shipping: We provide ocean, air, DHL, EMS, FedEx Express, TNT and UPS for transportation service.
