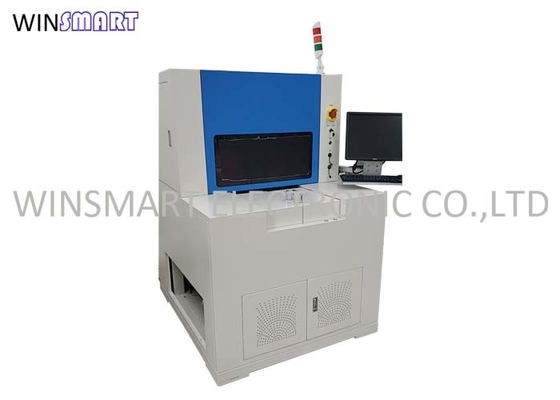

UV Laser Source PCB Laser Cutting Machine Without Stress

UV Laser Source PCB Laser Cutting Machine Without Stress
UV Laser Source PCB Laser Cutting Machine Without Stress
UV Laser Source PCB Laser Cutting Machine Without Stress UV Laser Source PCB Laser Cutting Machine Without Stress

Large Image :  UV Laser Source PCB Laser Cutting Machine Without Stress

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTL300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-150K/set
Packaging Details: Plywood case
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month

UV Laser Source PCB Laser Cutting Machine Without Stress

Description
Origin: China Laser: UV
Working Area: 300x300mm Fixture: Customized
CE Ceritificate: Yes Name: PCB Laser Cutting Machine
High Light:

PCB Laser Cutting Machine

,

300x300mm UV Laser Cutting Machine

,

355nm UV Laser PCB Depaneling Machine

Affordable Price UV Laser Source PCB Laser Cutting Machine Without Stress





PCB Laser Cutting Machine Overview:

1. The PCB laser cutting machine is mainly used in the cutting FPC / PCB / COB / LCP / MPI / COF / cop / pi / CPI in consumer electronics by solid-state laser source.

2. The equipment integrates high-speed and high-precision optical processing system, independent process and processing path optimization system, which can accurately cut the shape and control the half cutting depth. The application of ultra short pulse ultraviolet laser has greatly improved the processing quality of products.

3. It is a non-contact way, without mechanical cutting stress.



PCB Laser Cutting Machine Features:

1. Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product.

2. High quality laser, no contact processing, no burr and burr after cutting.

3. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics

4. Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc

5. No dust, good to PCB conductivity.

6. No stress, ±5μm cutting precision

7. Import gerber file for easy operation

8. Alien/line cutting is available

9. Non-contact, smooth cutting edge



PCB Laser Cutting Machine Specifications:

Laser solid-state UV laser
Laser Wavelength 355nm
Laser Source UV 15W@30KHz
Positioning Precision ±2μm
Repetition Precision ±1μm
Working Area 300mmx350mm(Customizable)
Scanning Speed 2500mm/S
Cutting Speed Less 2500mm/S
Cutting Path Line, Curve, Circle, Alien
Air Pressure 0.6-0.8MPa
Dimension 1250x1250x1740mm
Weight 1500kgs
