Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed

Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed
Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed
Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed

Large Image :  Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR17
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-35000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

Mini CNC Router PCB Cutting Machine 60000RPM Spindle Speed

PCB Connection: Milling Joints PCB Thickness: 0.4-3.5mm
Origin: China Cutting Precision: ±0.05mm
Max PCB: 460x410mm Name: CNC Router PCB
High Light:

60000RPM Spindle Speed CNC Router


CNC Router PCB Cutting Machine


Mini PCB Cutting Machine

Mini 60000RPM Spindle Speed CNC Router PCB Cutting Machine



CNC PCB Router Function:

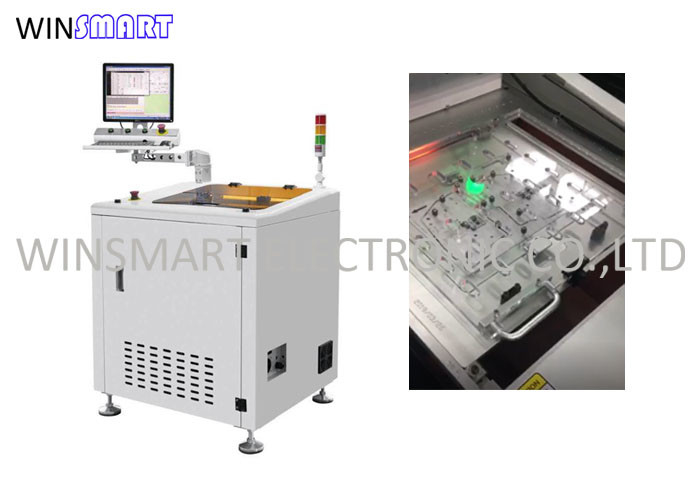

SMTR17 is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of c-cut or push, improve product quality and reduce scrap rate. This machine adopts latest operating system with man-machine interface. The cutting path can be modified by high pixel CCD teaching and editing, and it can also be modified step by step. Using the rotating platform as the loading and unloading device of PCB, the idle time of the machine can be effectively reduced, and the ideal production efficiency can be achieved.

1. Equipped with high pixel color CCD magnifying lens, auxiliary program teaching and editing simulation function, more accurate precision and clearer image.

2. Tool life monitoring: after cutting a certain distance, the milling cutter will automatically rise / fall to the position of the cutting edge which has not been cut. The up and down

distance and times can be set freely according to the length of the cutting edge, so as to prolong the life of the milling cutter.

3. The transparent safety door design makes the processing process clear at a glance. The door opens and stops to prevent accidents during processing, providing a safe operating environment for users

4. Automatic mark positioning and correction system, moving path display and tracking, automatic focus correction function, higher cutting accuracy.

5. Three same or different programs can be used on the same fixture to locate by mark, so as to ensure the cutting accuracy

6. Powerful dust collector can clean and solve the problem of cutting dust. The imported fan makes the dust collection more clean and low noise.

7. Use the left and right worktable to exchange processing and place PCB substrate, reduce waiting time and increase production capacity.

8. In general, the cutting machine is electrical, and the worktable is pneumatic. If it works for a long time, the PCBA may be damaged due to insufficient air pressure. The machine is completely powered on, so as to ensure its accuracy and stability.


PCB Router Specification:

Model Number SMTR17
Machine Size 850(L) x 750(W) x 1455(H)mm
Voltage 380V/50Hz, 2.5KW
Max PCB Size 410x460mm (single table), 260x310mm(dual table)
PCB Thickness 0.4-5mm
Feeding Mode Manual
PCB Positioning Customized fixture
Programming Vision teaching, inline programming
Cutting Spindle SycoTec 60000rpm/min(standard)
Cooling Type Self cooling
Dust Collection Mode Bottom collection
Cutting Speed 1-100mm/s
Repeat Accuracy ±0.01mm
Routing Bit 0.8-3.0 Diameter, right rotation
Repeat Accuracy ±0.02mm
Control System Industrial PC
Spindle Germany SycoTec 4015HY
Motion Control 4 axis motion control board
Lead screw C5 grinding screw lead
Camera Germany imaging 40W greay camera
LCD 17 inch


PCB Router Features:

1. Optional single/dual platform for max 460x410mm tab boards

2. PC and CCD vision system

3. Programming with compensation and bottom dust collection

4. Available for max 460mm boards

5. Flexible for different type of products, customized fixtures are available

6. Open type platform for LD/ULD and auto upgrade with robot
