Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting

Certification
China Winsmart Electronic Co.,Ltd certification
China Winsmart Electronic Co.,Ltd certification
Customer Reviews
The machine is on our production line being used and working well! It was a pleasure doing business with you!

—— Thomas

All your PCB depaneling machines are working very well, as we have been used them for more than 5 years! Qualified equipments! Excellent service!

—— Gary

I'm Online Chat Now

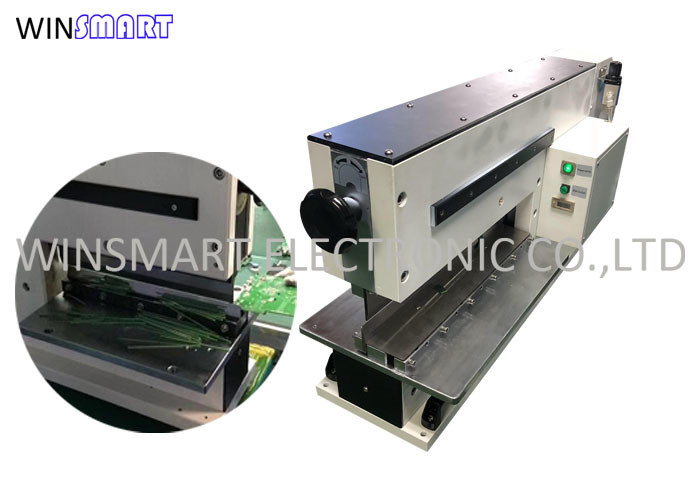

Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting

Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting
Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting
Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting

Large Image :  Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTPD2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting

Description
Max Blade Clearance: 2mm PCB Thickness: 0.4-5mm
Power: 18W PCB Material: FR1, FR4, MCPCB, CEM1, CEM3
Warranty: 1 Year Blade Life: More Than 50,000 Times
Blade Material: Japan High Speed Steel Cutting Method: V-CUT
Power Supply: AC220V/50Hz Product Name: PCB Separator Machine
High Light:

Metal Core PCB Separator

,

Aluminum PCB Separator

,

Copper Boards PCB Depaneling Machine

Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting





Metal Core PCB Separator Description:

The Metal Core PCB Separator Depaneling Machine is specifically designed for cutting and separating Metal Core PCBs, which are PCBs with a layer of metal (typically aluminum) as the base material. This machine utilizes advanced cutting technology to precisely separate aluminum PCBs into individual units, ensuring clean edges and minimizing the risk of damage to the PCB and its components

This PCB separator uses two linear blades to separate boards with less stress, like a scissor.

And operator cannot mis-feed boards.

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Metal Core PCB Separator Depaneling Machine For Aluminum PCB Cutting 0



Metal Core PCB Separator Features:

1. Lower cutting stress

2. No noise

3. Saves electricity

4. No burr

5. Linear blades could be customized made

6. Allow max 70mm components mounted

7. Operator will not mis-feed the board, max blade clearance is 2mm.



Metal Core PCB Separator Specification:

Model SMTPD2
Machine Dimension 720x300x440mm
Max Cutting Length 330mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Condition New
Blade Material High speed steel
Customized Blade Available
Blade Re-sharpen Yes
Power 110/220V
Machine Weight 130kgs



Metal Core PCB Separator Advantages:

1. Precise Cutting: The Metal Core PCB Separator Depaneling Machine utilizes high-precision cutting tools and mechanisms to ensure precise separation of Metal Core PCBs. This results in clean and accurate cuts, maintaining the integrity of the circuitry and minimizing the risk of damage to components.

2. Reduced Stress on PCB: The machine is designed to minimize stress on the Metal Core PCB during the cutting process. This is crucial for aluminum PCBs as they are more prone to deformation or damage due to their unique construction. By minimizing stress, the machine helps preserve the quality and reliability of the PCB.

3. Versatility: The machine is capable of handling various types of Metal Core PCBs, including single-layer, double-layer, and multi-layer boards. It can accommodate different PCB sizes, thicknesses, and designs, making it suitable for a wide range of applications.

4. Automated Operation: The Metal Core PCB Separator Depaneling Machine typically features automated operation, allowing for continuous and efficient PCB cutting. This helps to enhance productivity and reduce manual labor requirements.

5. Safety Features: Safety is prioritized in the design of the machine, with features such as blade guards, safety interlocks, and emergency stop buttons. These ensure the safety of operators and reduce the risk of accidents or injuries during the depaneling process.



Metal Core PCB Separator Applications:

1. LED Lighting: Metal Core PCBs are commonly used in LED lighting applications, such as LED strips, automotive lighting, and high-power LED modules. The machine ensures precise cutting and separation of Metal Core PCBs used in these lighting systems.

2. Power Electronics: Metal Core PCBs are suitable for power electronics applications due to their excellent thermal conductivity and heat dissipation properties. The machine is utilized in the production of power supplies, motor drives, inverters, and other power electronic devices.

3. Automotive Electronics: The automotive industry relies on Metal Core PCBs for applications such as vehicle lighting, engine control units, and infotainment systems. The machine aids in the efficient and accurate separation of Metal Core PCBs used in automotive electronics.

4. Industrial Electronics: Metal Core PCBs find application in industrial electronic equipment, including power modules, control systems, and communication devices. The machine ensures precise depaneling for the manufacturing of reliable industrial electronics.

5. Renewable Energy Systems: Metal Core PCBs are used in renewable energy systems such as solar inverters and wind power converters. The machine assists in the production of Metal Core PCBs for these energy-efficient technologies.

The Metal Core PCB Separator Depaneling Machine offers precise cutting, reduced stress on the PCB, versatility, automated operation, customizable cutting parameters, and safety features. It finds applications in LED lighting, power electronics, automotive electronics, industrial electronics, and renewable energy systems manufacturing processes.
