Product Details:
|
| PCB Thickness: | 0.3-5mm | Max Cutting Length: | 600mm |
|---|---|---|---|
| Blade Material: | High Speed Steel | Cutting Stress: | Less Than 400ustrain |
| Test Report: | Provided | Name: | PCB Guillotine |
| High Light: | Customizable Manual PCB Cutter,5mm Thickness Manual PCB Cutter,High Speed Steel Blade PCB Guillotine |
||

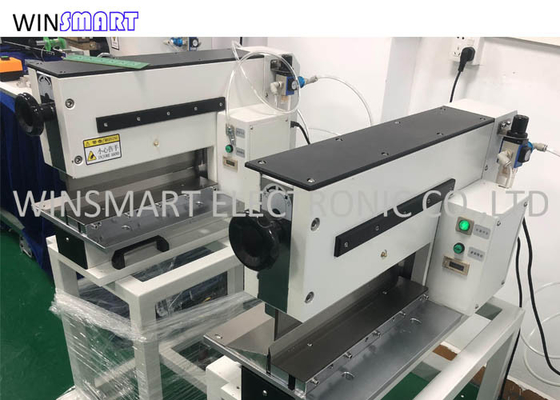

Customizeable PCB Guillotine Manual PCB Cutter PCB Singulation
PCB Guillotine Features:
1. Dual V shape blades for a perfect board cut without bending or tension.
2. Pneumatic footpedal control.
3. Small clearance between upper and lower blades to ensure safety operation.
4. The system only allow correct board placement to avoid mistakes.
5. Separate boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors
6. Compressed air as power, clean and low cost.
7. Customized blades are available.
8. Customized tray for easier handling is available.
PCB Guillotine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
