PCB Material: | FR1, FR4, CEM1, CEM3, MCPCB | Max Component Height: | 70mm |
---|---|---|---|
Blade Type: | Linear Blade | Cutting Stress: | Less Than 400ustrain |
Test Report: | Provided | Name: | PCB V Cut Machine |
Highlight: | 70mm Components PCB V Cut Machine,2 Linear Blades PCB V Cut Machine,Copper Boards PCB Cutter |
PCB V Cut Machine PCB Cutter With 2 Linear Blades Allows Max 70mm Components
PCB V Cut Machine Specification:
Model | SMTPD2 |
Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
Max Cutting Length | 330mm / 200mm / 130mm |
PCB Material | FR4, MCPCB, CEM, Copper Boards |
Air Pressure | 0.4-0.7MPa |
PCB Thickness | 0.3-3.5mm |
Power | 110/220V |
Machine Weight | 130kgs / 100kgs / 80kgs |
PCB V Cut Machine Features:
Dual V shape blades for a perfect board cut without bending or tension.
Pneumatic footpedal control.
Small clearance between upper and lower blades to ensure safety operation.
The system only allow correct board placement to avoid mistakes.
Separate boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors
Compressed air as power, clean and low cost.
Customized blades are available.
PCB V Cut Machine Options:
1. Customized blades
2. Safety enclosure custom designed
3. Tray to safety catch boards after cutting
4. LCD display
Guillotine PCB Cutter Parameters:
![]() |
D=0.6~1.5mm |
Emin=0.3mm | |
Hmax=45mm | |
Max cutting length mm | 400 |
Compressed Air MPa | 0.4~0.6 |
Power VAC | 220V/110V |
Weight Kg | 230 |

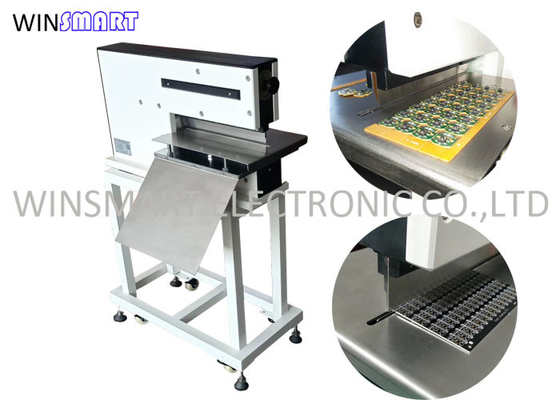

PCB V Cut Machine Photos:
