T5 T8 Tube Automatic PCB Separator Machine For LED Strip Cutting

Brand Name:	Winsmart
Model Number:	SMTAD10
MOQ:	1 set
Price:	USD1-10000/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

PCB Thickness:

0.8-1.2mm

CE Certificate:

Approval

Voltage:

220V/110V

Multi-blade:

3-20 Sets

Service:

24H Online Support

Name:

T8 Tube LED Strip Cutting Machine

Supply Ability:

200 sets per month

Highlight:

Automatic PCB Separator Machine

T8 Tube PCB Separator Machine

LED Strip Cutting PCB Separator

Product Description

T5 T8 Tube LED Strip Cutting Machine Automatic PCB Separator

T8 Tube LED Strip Cutting Machine Application:

PCB Thinness: 0.2-5mm (Multi-connected PCB)

PCB Material: Aluminum PCB, copper substrate, FR4, Glass fiber Board etc.

T8 Tube LED Strip Cutting Machine Working Principle:

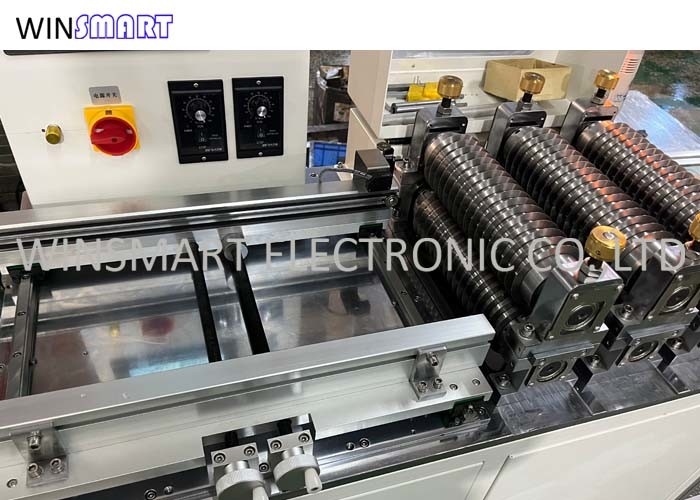

The multi-blade PCB depaneler is one of this kind of machines, which could improve 10 times productivity. For FR4 boards, it is enough to use upper 2 blades sets and lower 2 blade sets. For MCPCB boards, need to use upper 3 blade sets and lower 3 blade sets. Let us name A, B, C for the 3 blade sets, first blade set A cutting 30% of web, second blade set B cutting 30% of web, ad the last blade set cutting 40% of web to finish the whole cutting. After cutting, PCB edge is clean without burrs, product quality improves a lot. The machine is good helper for the LED manufacturers.

T8 Tube LED Strip Cutting Machine Specification:

Max cutting length	No limit
Min cutting length	100mm
Max panel width	220mm
Custom cutting width	300mm
Min PCB width	8mm
PCB thickness	0.8-3.5mm
Feeding speed	0-500mm/s
Working tem.	10-35℃
Blade material(auto-lock function)	Imported high precision steel
Storge tem.	-20-50℃
Voltage	110-220V
Dimension	21605701050mm

T8 Tube LED Strip Cutting Machine Features:

1. It can cut many boards with multiple sets of knives work at the same time.

2. The knife flywheel is adjustable as a whole from 0 to 5mm

3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm

4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.

5. It is convenient to adjust the cutting speed through rotary knob

6. No limits of the cutting length.

7. Thickness range of PCB: 0.8-3.5mm

8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.

9. The machine adopts multiple blade to separate boards with simple operation and high efficiency.

10. Feeding track and flat belt is adjustable.
