Product Details:
|
PCB Material: | FR4, MCPCB | Driven: | Motor |
---|---|---|---|
Cutting Length: | 400mm | Cutting Speed: | 0-300mm/s |
Warranty: | 1 Year | Name: | PCB Depaneling Hand Tool |
Highlight: | Sensor Protection PCB Depaneling Hand Tool,Blade Moving PCB Depaneling Hand Tool,300mm/s V Cut PCB Depaneling Machine |

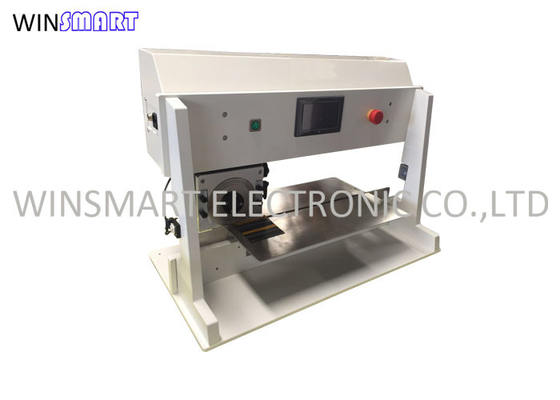

Sensor Protection Blade Moving Type PCB Depaneling Hand Tool
PCB Depaneling Hand Tool Description:
Operator feed the boards by v-cut lines, then PCB board won't move, and upper circular blade moving to cut the PCB boards.
Cutting edge is smooth, and burr-free, improve cutting quality comparing with manual breaking.
This machine is mainly used in electronics assembly industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry, etc.
PCB Depaneling Hand Tool Advantages:
1. Controlled by Micro-Computer Program, patented design, high accuracy and with good stablity.
2. Cutting Speed adjustable, have two options : 500mm/s and 300mm/s, if customer want to set other speed, we can customise for customer.
3. Separation length can be programmed: 0-100-200-300-400MM
4. Cutting Material PCB must with Pre-scored groove,
When operating, put the PCB which is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.
5. Operating table height is adjustable, from 0-50mm.
6. Rotary Knife adjustable : 0-2mm . in order to suit for different sickness PCB board and different depth of pre-scored V-cut.
7. For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
8. PCB Board thickness : 0.2-3.2mm, V-cut depth : 0.2-2mm. PCB Length :0-1300mm.
9. Upper circular blade and Bottom linear balde all exported steel long life blade, durable, when the blade is not sharp, can grind 7-10 times, repeated use.
PCB Depaneling Hand Tool Specifications:
Model | SMTAD5 |
Machine Dimension | L740*W550*H460 |
Max Cutting Length | 400mm |
PCB Material | FR4, MCPCB |
Cutting Speed | 300mm/s or 500mm/s |
PCB Thickness | 0.6-2.0mm |
Power | 220/110V |
Machine Weight | 60kgs |
