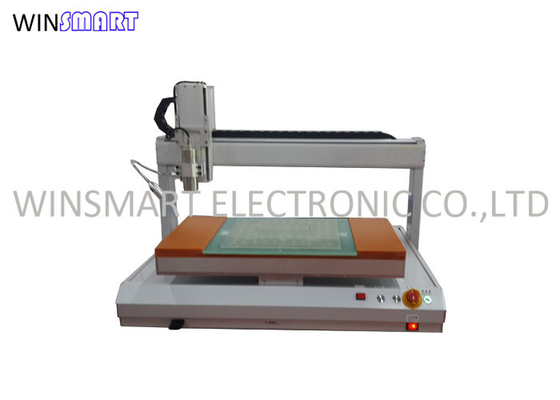

Winsmart PCB CNC Router Machine PCB Milling Machine For PCB Assembly
  • Name

Winsmart PCB CNC Router Machine PCB Milling Machine For PCB Assembly

Brand Name: Winsmart
Model Number: SMTDR300
MOQ: 1 Set
Price: USD20000-80000
Packaging Details: Plywood case
Payment Terms: T/T, L/C, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
White
PCB Material:
FR4, Aluminum
PCB Thickness:
0.8-3.0mm
Advantage:
Easy Programming
Cutting Precision:
±0.05mm
Max PCB Size:
Customizeable
Routing Bit:
Dia 0.8-2.5mm
User Manual:
1pc
Certificate:
Provided
Product Name:
PCB CNC Router Machine
Supply Ability:
100 Sets/Month
Highlight:

FR4 PCB CNC Router Machine

,

40000rpm PCB CNC Router Machine

,

500mm/s PCB Milling Machine

Product Description

Winsmart PCB CNC Router Machine PCB Milling Machine For PCB Assembly





PCB CNC Router Machine Advantages:

1. Lower cutting stress

2. Smooth cutting edge

3. Easy operation when products are changed

4. Fixture cost is low



PCB CNC Router Machine Features:

Bench-top single table PCB router with speeds up to 100mm/s and positioning speeds of 500mm/s.

Teaching box for programming, easy to program for new products.

High quality spindle system enables the system to accelerate and decelerate quickly, reducing synchronization time and increasing productivity while maintaining high precision. This unit is cost-effective, working table dimension could be customized according to client's PCB boards.



PCB CNC Router Machine Specification:

Drive system motor servo / stepper motor
Spindle domestic / imported spindle
Cutting performance 500mm / s
Drive system repeatability ± 0.02mm
Cutting speed Max 100mm / S depends on PCB material and cutting quality
Resolution ±0.01mm
XYZ Stroke 300 x 300 x 100mm(standard)
PCB positioning special or standard fixture
Handling method manual mode
Thickness of circuit board 0.4mm-4mm
Spindle power 0.5 kW
Spindle speed 40,000 rpm
Machine size 650x550x500mm
Weight 75KG




PCB CNC Router Machine Fixture:

PCB router fixture







Tags:

White PCB Depaneling Machine

4.5kg/cm2 Air Pressure PCB cutter machine

PC control PCB Depaneling Router Machine
