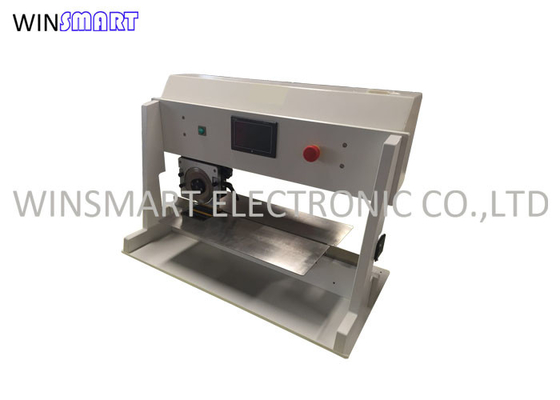

500mm/s Automatic Cutting Machine for Aluminum PCB Depaneler

Brand Name:	Winsmart
Model Number:	SMTAD5
MOQ:	1 set
Price:	USD1-10000/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Function:

PCB Depaneling

CE Approval:

PCB Material:

FR1, FR4，MCPCB

Cutting Speed:

Adjustable

Condition:

Name:

Automatic Cutting Machine For PCB

Supply Ability:

200 sets per month

Highlight:

500mm/s Automatic Cutting Machine

Aluminum PCB Automatic Cutting Machine

Aluminum PCB Depaneler

Product Description

500mm/s Automatic Cutting Machine for PCB Aluminum PCB Depaneler

Aluminum PCB Depaneler Function:

This type of PCB Separator is using one circular blade and one linear blade, PCB boards will not move during cutting, components mounted on the boards is protected from damage.

Board thickness is reduced by boards being scored along the cut line on both sides. Both sides of the panel are scored to a depth of about 30% of the board’s thickness. PCBs are then broken out of the panel.

Aluminum PCB Depaneler Features:

1. Lower cutting stress to protect PCBs.

2. Blade movement to protect components from damage.

3. Separating speed is adjusted by a rotary knob.

4. There is safe sensor to ensure safe operation

5. Optional conveyor belt

6. Solve less 1.0mm "V" grooves separating

7. "V" groove guide device can adjust the vertical height to fit different thickness of PCBs

8. Blades could be re-sharpened

9. Blades could be customized as customers’ request

Aluminum PCB Depaneler Parameters:

Model	SMTAD5
Machine Dimension	L740W550H460
Max Cutting Length	400mm
PCB Material	FR4, MCPCB
Cutting Speed	300mm/s or 500mm/s
PCB Thickness	0.6-2.0mm
Power	220/110V
Machine Weight	60kgs

Aluminum PCB Depaneler Application:

Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc.
