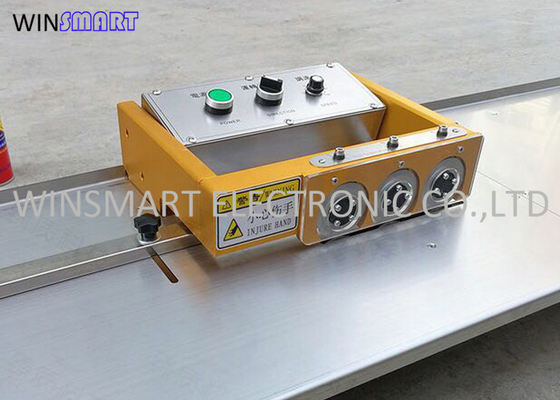

PCB Depanel Multi Cutter Machine 2000pcs/hour For 1200mm LED Strips

Description
PCB: FR4, MCPCB Max Component: 10mm Height
Voltage: 220V/110V Blade Quantity: 6PCS
Platform: 2.4M(Could Be Customized) Name: Multi Cutter Machine
High Light:

PCB Depanel Multi Cutter Machine

,

1200mm LED Strips Multi Cutter Machine

,

FR4 V Cut PCB Depaneling Machine

Multi Cutter Machine PCB Depaneler 2000pcs/hour For 1200mm LED Strips





Multi Cutter Machine Working Principle:

It is a group composed of one upper and one lower blade, and is also a cutting unit. There are A, B, C, three groups. The whole cutting process is divided into three stages from group A blade which cut 40% board then to the group B blade knife cut through groove cutting by group A to complete another 40% .the last 20% is cut by group C blade and finishing.



Multi Cutter Machine Features:

1. Minimize internal cutting stress to avoid tin crack phenomenon.

2. Improve the lower blade could solve out cutting the boards with jump v-cut

3. Operator foolproof! Safely operate

4. Panel fully functional, flexible

5. Optional equipped with conveyor belt

6. Can solve boards with v-cut thickness lower than 1.0 mm by cutting

7. V-groove guide equipment can vertically adjust the three upper blades to faster and easier to suitable different thickness boards

8. The upper blade distance can be adjusted vertically

9. Circular blades can be reuse after re-grinded



Multi Cutter Machine Specification:

Model SMTD3
Machine Dimension 400x400x330mm
Platform Dimension 2400x300x200mm
Max Cutting Length No limit
PCB Material FR4, MCPCB, Copper Boards
Cutting Speed 0-500mm/s
PCB Thickness 0.6-3mm
Power 220/110V
Machine Weight 44kgs
Wooden Case Dimension 116x67x58cm
Gross Weight 76kgs



Multi Cutter Machine Parameters

PCB Depanel Multi Cutter Machine 2000pcs/hour For 1200mm LED Strips 0PCB Depanel Multi Cutter Machine 2000pcs/hour For 1200mm LED Strips 1

A : > 0.25mm

B: 1.0mm(Max)

Standard cutter :

C2: ≧2mm C1: ≧2mm

Θ: ≧200

Cutters can be Customer made



Max cutting length(mm) unlimited
Speed(mm/sec) adjustable
Power Supply(VAC) 220/110
Weight(Kg) 48
Component Height(mm) ≤8
Power AC 220V/50HZ
Cutting thickness 0.5-3.0mm
