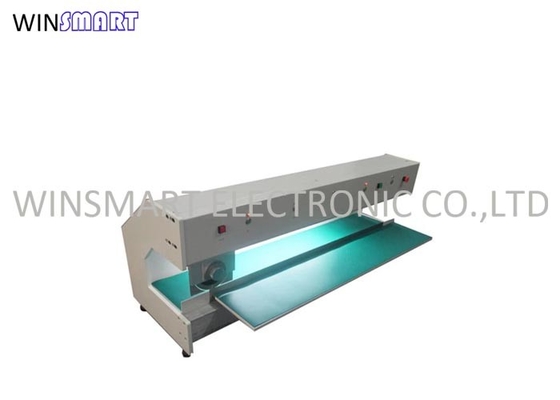

Sensor Protection V Cut Boards PCB Cutting Tool Automatic PCB Singulation

Sensor Protection V-cut Boards PCB Cutting Tool Automatic PCB Singulation

PCB Singulation Application:

1. Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...

3. Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.

V-cut Boards PCB Singulation Features:

• Separate pre-scored PCB assembly without stress on either PCB or component
• ．One touch programming of cut length with digital display
• ．Separating speed is adjusted by a rotary knob
• ．Handle Intermittent scoring or cut-outs
• ．Board with projected component can be cut precisely
• ．Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable
• ．Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
• ．Blades could be re-sharpened
• ．Blades could be customized as customers’ request

PCB Singulation Specifications:

PCB Singulation Installation:

• The machine should be handled by forklift. Short distance can be carried by hand.
• The holding table must be flat and stable.
• Connect 110V/220VAC power supply plug

PCB Singulation Advantages:

1.Easy maintanance and operation
2.Low bending stress,no vibration
3.specially for resin substrate PCB with pre-scored V groove

4.safety use

PCB Singulation Re-sharpened Blades

Blade could be sharpened 2-3 times.

PCB Singulation Rust Prevention and Lubrication

．Put rust prevention oil to blades when the machine is not used.

．After working 100km(about 50 days),needs to put lubricating oil to the eye of the slider.

．Use Mobil Grease MP or lubricating oil.
