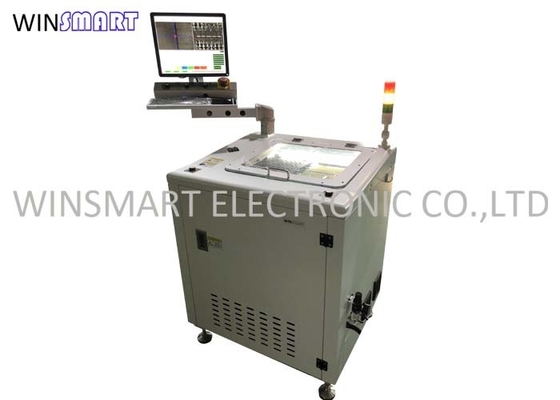

Stand Alone PCB Milling Cutter Machine Self Cooling

Description
Machine Function: PCB Depaneling PCB Thickness: 0.4-3.5mm
Spindle: SycoTec Cutting Precision: ±0.05mm
Max Panel: 460x410mm Name: PCB Milling Cutter Machine
Highlight:

Stand Alone PCB Milling Cutter Machine

,

Self Cooling PCB Milling Cutter Machine

,

5mm PCB Depaneling Router Machine

Cost-effective Stand Alone PCB Milling Cutter Type PCB Separator Router Machine





PCB Milling Cutter Machine Function:

PCB milling cutter machine is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of c-cut or push, improve product quality and reduce scrap rate. This machine adopts latest operating system with man-machine interface. The cutting path can be modified by high pixel CCD teaching and editing, and it can also be modified step by step. Using the rotating platform as the loading and unloading device of PCB, the idle time of the machine can be effectively reduced, and the ideal production efficiency can be achieved.



PCB Milling Cutter Machine Advantages:

1. Optional single/dual platform

2. PC and CCD vision system

3. Programming with compensation and dust collection

4. Available for max 460mm boards

5. Flexible for different type of products

6. Open type platform for LD/ULD and auto upgrade with robot

7. Used for routed PCB panel singulation with lower stress

8. Top cutting and bottom vacuum cleaner





PCB Milling Cutter Machine Features:

1. Equipped with high pixel color CCD magnifying lens, auxiliary program teaching and editing simulation function, more accurate precision and clearer image.

2. Tool life monitoring: after cutting a certain distance, the milling cutter will automatically rise / fall to the position of the cutting edge which has not been cut. The up and down distance and times can be set freely according to the length of the cutting edge, so as to prolong the life of the milling cutter.

3. The transparent safety door design makes the processing process clear at a glance. The door opens and stops to prevent accidents during processing, providing a safe operating environment for users

4. Automatic mark positioning and correction system, moving path display and tracking, automatic focus correction function, higher cutting accuracy.

5. Three same or different programs can be used on the same fixture to locate by mark, so as to ensure the cutting accuracy

6. Powerful dust collector can clean and solve the problem of cutting dust. The imported fan makes the dust collection more clean and low noise.

7. Use the left and right worktable to exchange processing and place PCB substrate, reduce waiting time and increase production capacity.

8. In general, the cutting machine is electrical, and the worktable is pneumatic. If it works for a long time, the PCBA may be damaged due to insufficient air pressure. The machine is completely powered on, so as to ensure its accuracy and stability.



PCB Milling Cutter Machine Specification:

Model Number SMTR17
Machine Size 850(L) x 750(W) x 1455(H)mm
Voltage 380V/50Hz, 2.5KW
Max PCB Size 410x460mm (single table), 260x310mm(dual table)
PCB Thickness 0.4-5mm
Feeding Mode Manual
PCB Positioning Customized fixture
Programming Vision teaching, inline programming
Cutting Spindle SycoTec 60000rpm/min(standard)
Cooling Type Self cooling
Dust Collection Mode Bottom collection
Cutting Speed 1-100mm/s
Repeat Accuracy ±0.01mm
Routing Bit 0.8-3.0 Diameter, right rotation
Repeat Accuracy ±0.02mm
Control System Industrial PC
Spindle Germany SycoTec 4015HY
Motion Control 4 axis motion control board
Lead screw C5 grinding screw lead
Camera Germany imaging 40W greay camera
LCD 17 inch





PCB Milling Cutter Machine Technical Parameters:

NO. DESCRIPTION DATA
1 Meas. 850×750×930mm(exclude alarm light)
2 XYZ stroke 410x460x60mm
3 PCB max size 410×460mm
4 Servo system X,Y Axis AC servo motor(400W) Z Axis(100W)
4 Spindle speed 2000-60000rpm/min
5 Cutting speed 1-100mm/sec
6 PCB position Jig fixture
7 Picking system By manual
8 Dust collect Bottom collect
9 Tool φ0.8~3mm
10 Cutting accuracy ±0.05mm
11 PC Windows 7 or windows 10
12 Moving speed 1000mm /s(max)
13 Programming PC/CCD
14 Air supply 5-8㎏/㎝³
15 Power Supply AC220V±5% 50 /60Hz 3kw



PCB Milling Cutter Machine Installation:

1. Environment setting

1.1 The equipment should be installed in a ventilated and dry place. Do not install it in a place that is easy to corrode or flammable.

1.2 The equipment should not be installed in places exposed to sunlight and high heat.

1.3 Do not place the equipment in the place with strong vibration and easy collision.



2. Mechanical installation

2.1 Place the equipment in the designated position.

2.2 Adjust the level of the equipment with a level instrument, and then tighten the foot cup screw.

2.3 Connect the hose of the dust collector to the dust collecting port of the equipment.

2.4 Connect the power plug of the dust collector with the equipment to confirm the operation direction and dust collection effect. If it is reversed, replace any two of the three power lines.

2.5 Grounding requirements: please connect the equipment to the ground wire of distribution box separately, and do not connect with other equipment in series.



3. Power supply configuration

3.1 The standard input of the equipment is single-phase 220 V AC.

3.2 The equipment input 3-phase 380V AC needs to be equipped with transformer.



PCB Milling Cutter Machine Appearance Size:
