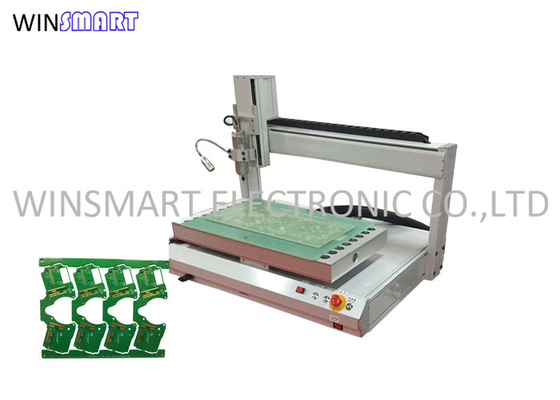

Benchtop PCB Router Description:

This PCB router is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of c-cut or push, improve product quality and reduce scrap rate. This machine adopts latest operating system with man-machine interface.



Benchtop PCB Router Features:

1. Bench-top single table PCB router with speeds up to 100mm/s and positioning speeds of 500mm/s.

2. Easy to program, stable XYZ axis with teaching box.

3. High quality spindle system enables the system to accelerate and decelerate quickly, reducing synchronization time and increasing productivity while maintaining high precision.

4. Use high quality hardware to ensure high steel and high performance.

5. Cost-effective and workable table could be customized made

6. Dia 0.8-2.5mm routing bits are available.



Benchtop PCB Router Specification:

Drive system motor servo / stepper motor
Spindle domestic / imported spindle
Cutting performance 500mm / s
Drive system repeatability ± 0.02mm
Cutting speed Max 100mm / S depends on PCB material and cutting quality
Resolution ±0.01mm
XYZ Stroke 300 x 300 x 100mm(standard)
PCB positioning special or standard fixture
Handling method manual mode
Thickness of circuit board 0.4mm-4mm
Spindle power 0.5 kW
Spindle speed 40,000 rpm
Machine size 650x550x500mm
Weight 75KG




Benchtop PCB Router Application:

LED Industry Benchtop PCB Depaneling Router for Aluminum PCB Cutting 0





PCB Router FAQ:

1.A: What is life time of routing bit?

   Q:150-300 meters.

2.A: Can this model cut Aluminum PCB boards?

   Q: Yes, it can.

3.A: What about PCB positioning?

   Q: Use customized jig for positioning.

4.A:What is the spindle for the inline PCB router?

   Q:Germany SycoTec 4025.

5.A:How to package it?

   Q:Router and cleaner is packaged into separated wooden case after vacuum.

6.A:Is on-site installation and training available.

   Q:Yes, it is available.

7.A:What is your terms of delivery?

   Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
