0.6-1.2mm Soldering Wires Double Head Automatic Solder Machine Multi Axis

0.6-1.2mm Soldering Wires Double Head Automatic Solder Machine Multi Axis
0.6-1.2mm Soldering Wires Double Head Automatic Solder Machine Multi Axis

Large Image :  0.6-1.2mm Soldering Wires Double Head Automatic Solder Machine Multi Axis

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTSR224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

0.6-1.2mm Soldering Wires Double Head Automatic Solder Machine Multi Axis

Description
Usage: Soder Wire Soldering New: Yes
Fixture: Customized Made Warranty: 1 Year
Working Stroke: 250(X1)x250(X2)x300(Y1)x300(Y2)x80(Z)x360°(R1)x360°(R2) Name: Automatic Solder Machine
High Light:

1.2mm Soldering Wires Automatic Solder Machine

,

Double Head Automatic Solder Machine

,

Multi Axis Robotic Soldering Machine

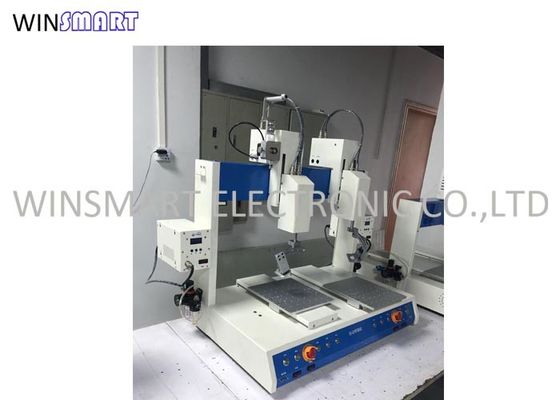

0.6-1.2mm Soldering Wires Double Head Double Table Automatic Solder Machine





Automatic Solder Machine Features:

1. Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions, and also built-in screwing, dispensing and handling procedures.
2. The equipment can store 99 operating procedures.
3. The same machine can process 99 different products by soldering tin.The mechanical arm of the equipment is made of aluminium profiles by open-die casting. It is not deformed, rust-free and runs steadily.
4. Programming can copy point-to-point and block-to-block to shorten the programming time.
5. The equipment has the function of automatic cleaning, which stabilizes the quality of soldering tin processing and prolongs the service life of soldering iron tip to a certain extent.
6. Multi-axis linkage manipulators are all driven by precision stepper motor and advanced motion control algorithm, which can effectively improve the accuracy of motion positioning and repetition.



Automatic Solder Machine Hardware Parameters

  • Driving: stepping motor
  • Motor axis No.:Multi Axis
  • Repeatability XYZ:±0.02mm
  • Repeatability R:±0.02°
  • Feeding controller: stepping motor
  • External communications:RS232/USB
  • File storage space: Teaching box 128M, host 16M, the largest single occupancy 3M processing file storage space (one hundred thousand processing points)
  • USB function:teaching box can be used as a USB host and slave, the host can be used as USB slave
  • Power:AC 220V/50Hz
  • Working tem.:-5 ~ 50℃
  • Storage tem.:-30℃ ~ 70℃
  • Working humidity:20% ~ 90%
  • Storage humidity:10% ~ 95%



Automatic Solder Machine Software Description:

  • System parameters, vendors parameters can be password protected.
  • Support space-axis linear interpolation, torch rotation axis interpolation.
  • Use of look-ahead algorithm, automatic smooth corner speed.
  • Support computer graphics import feature can import PLT files and G-code file.
  • Trajectory hysteresis function & advanced closing feeding function, solve problems start and end of the heap of tin.
  • Rich sports instruction and auxiliary instruction set
  • Convenient and friendly teaching and editing files, and provides bulk edit, copy arrays, graphics pan, graphics scaling, automatic fillet, bulk delete, and other advanced editing features.
  • Graphic display, it can be very intuitive display processing file graphic shapes Real-time dynamic display processing path.
  • Convenient help system, in any interface, press Shift + F1 key to invoke the help file.

Automatic Solder Machine Specifications:

Model SMTSR224
Dimension 680*500*720mm
Weight 90Kg
Control PLC
Programming Teaching box
Driving mode Stepper motor
Stroke 500(X)x300(Y1)x300(Y2)x80(Z)x360(R)
Soldering head 2
Repeatability ±0.02mm(X/Y/Z)
Temp. Range 0-550℃
Solder Wire Spec ¢0.3-1.6mm
Number of axes Multi
Working pressure 0.4~0.6Mpa(No water mist)
Power AC110V/220V 300W
Display LCD





Automatic Solder Machine Application:
