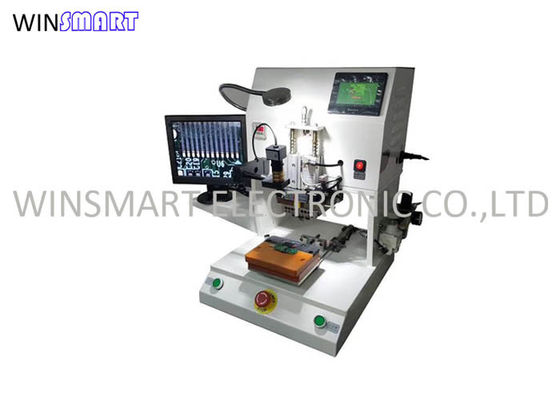

FPC PCB Hot Bar Soldering Machine Pulse Hot Press Welding

Usage: FPC To PCB Soldering Max Thermode: 80mm Long
Voltage: 220V/110V Temperature Accuracy: ±2°C
Warranty: 1 Year Name: Semi-automatic Hot Bar Soldering Machine
High Light:

PCB Hot Bar Soldering Machine


FPC Hot Bar Soldering Machine


Hot Press Welding Soldering Machine

Temperature Profit Display Semi-automatic Hot Bar Soldering Machine



Hot Bar Soldering Machine Description:

Hotbar is also known as "pulse hot press welding", but most people in the industry literally call it "hotbar". The principle of hotbar is to first print the solder paste on the solder pad of the circuit board (PCB), then melt the solder paste in the reflow oven and pre solder it on the circuit board, and then place the solder to be soldered (generally FPC) on the printed circuit board, Then use the heat of the hot indenter to melt the solder and connect the two electronic components that need to be connected.


Hot Bar Soldering Machine Features:

1. The heating rate is customized to meet different products.

2. Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.

3. The level of soldering head is adjustable, to ensure uniformpart assembly processing.

4. Digital display to control temperature, easy and clear.

5. With digital pressure meter, can be preset pressure range.

6. Special welding materials.

7. It is equipped with precise PID control, phase Angle instead of pulse drive.

8. Little vibration, low noise, no voltage fluctuation.

9. Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting.


Hot Bar Soldering Machine Advantages:

Hot Bar Soldering Machine is an excellent tool and extremely effective in bonding components and parts that are different and not easy to stick together. classic hot bar, pulse bonding, resistance soldering equipment applications include flexible circuits, ribbon cables, wires, flex to PCB, flex to LCD, and thermo compression bonding of gold ribbon as found in the telecommunications, computer, automotive, display industries and other.



Hot Bar Soldering Machine Application:

LCD Module, Solar Battery, Camera , Electronic Components, Coil / Inductor, Mobile Devices, PWB, Power Devices.

All where there need to be heated or fusing or joining or forming.


Hot Bar Soldering Machine Specification:

Machine size 610×410×450mm
Working area Max 150*150mm
Machine weight 62Kg
Working air pressure 0.6-0.8Mpa
Fixture quantity 1
Thermode head size Max 40*3mm
Welding precision pitch 0.2mm
Pressing time 1~99.9s
Temperature settings RT~500℃ tolerance ±5℃
Welding pressure 1~20Kg
Temperature settings Two
Working environment 10-60℃,40%-95%
Power supply AC220V±10% 50HZ,2200W
Alignment mode CCD + LCD Monitor
Feeding mode Manual
Starting mode Press start button
Rotation Platform Cylinder control,tolerance<0.02mm
