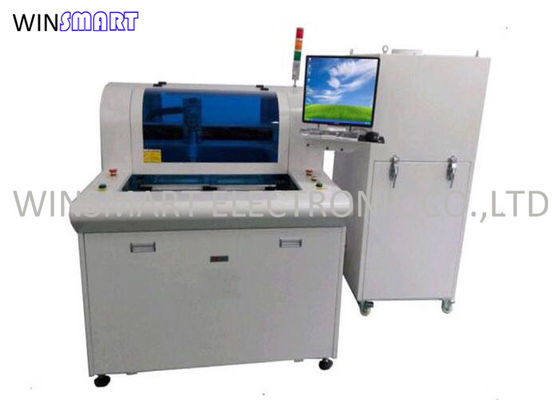

3.0mm Thick PCB Router Machine 2.2KW CNC PCB Milling Machine

3.0mm Thick PCB Router Machine 2.2KW CNC PCB Milling Machine
3.0mm Thick PCB Router Machine 2.2KW CNC PCB Milling Machine

Large Image :  3.0mm Thick PCB Router Machine 2.2KW CNC PCB Milling Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR07
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

3.0mm Thick PCB Router Machine 2.2KW CNC PCB Milling Machine

Color: White PCB Thickness: 0.8-3.0mm
Application: Tab PCBA Panel Cutting Precision: ±0.05mm
Max PCB Size: 280x320mm Vacuum Cleaner: 3HP/2.2KW
Routing Bit: Dia 0.8-2.5mm User Manual: 1pc
On-site Installation: Yes Product Name: Automatic PCB Router Machine
High Light:

3.0mm Thick PCB Router Machine


2.2KW CNC PCB Milling Machine


80mm/S CNC PCB Milling Machine

Automatic PCB Router Machine CNC PCB Milling Machine PCB Separator



Automatic PCB Router Machine Features:

1. 1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.

3. AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.





Automatic PCB Router Machine Specification:

I. Hardware
SPINDLE Morning Star spindle (optional)
CCD Sony 520 line industrial cameras
LENS Computar EX2C
Screw TBI Precision ground ball screw imports
Guide HIWIN widening Imported linear guide rail
MOTOR JiaBao LCF Series
I/O CARD PCI-9074-64pcs/-38pcs
Static cleanup STATIC-ST401A Series
Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface AOC LCD17",Logitech mouse
2. software
Control system Windows XP Professional (Service3,v.3244)
Operation GUI English Windows XP
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.2.88 version


Automatic PCB Router Machine Parameters:

Dimensions(W*D*H) 1220mm*1380mm*1240mm
Weight 450KG
Height offset 60~110mm
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 650mm*560mm*50mm
Work station
PCB fixation standard, specialization
PCB loading/unloading manual
PCB size (max) 280*320mm
PCB thick (max) 3.5mm
Rigidity fixturing Customized make fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button




Automatic PCB Router Machine Solves Below Pain Points:

The current pain points faced by manufacturing enterprises are as follows
1. Daily production is time-consuming, inefficient and slow.
2. It is difficult to control the production process and improve the quality of production and service.
3. Old production methods, low production capacity, poor quality and high customer complaint rate.
4. High employment cost and serious labor shortage.
5. Lack of effective production equipment, because the quality of the products is not in place, resulting in project losses, affecting brand competitiveness.
