Automatic PCB Depaneling Machine Adjustable Pcb V Cut Machine

Automatic PCB Depaneling Machine Adjustable Pcb V Cut Machine
Automatic PCB Depaneling Machine Adjustable Pcb V Cut Machine

Large Image :  Automatic PCB Depaneling Machine Adjustable Pcb V Cut Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTAD5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Automatic PCB Depaneling Machine Adjustable Pcb V Cut Machine

Description
PCB Material: FR4, MCPCB Driven: Motor
Cutting Length: 400mm Cutting Speed: Adjustable
Condition: 100% New Name: Automatic PCB Depaneling Machine
High Light:

Automatic PCB Depaneling Machine

,

Adjustable PCB Depaneling Machine

,

Burr Free Pcb Depaneling Machine

Automatic PCB Depaneling Machine Professional V-cut PCB Cutter





PCB Depaneling Machine Introduction:

Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...

Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.





PCB Depaneling Machine Features:

1. Controlled by Micro-Computer Program, patented design, high accuracy and with good stablity.

2. Cutting Speed adjustable, have two options : 500mm/s and 300mm/s, if customer want to set other speed, we can customise for customer.

3. Separation length can be programmed: 0-100-200-300-400MM

4. Cutting Material PCB must with Pre-scored groove,

When operating, put the PCB which is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.

5. Operating Panel height is adjustable, from 0-50mm.

6. Rotary Knife adjustable : 0-2mm . in order to suit for different sickness PCB board and different depth of pre-scored V-cut.

7. For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.

8. PCB Board thickness : 0.2-3.2mm, V-cut depth : 0.2-2mm. PCB Length :0-1300mm.

9. Upper circular blade and Bottom linear balde all exported steel long life blade, durable, when the blade is not sharp, can grind 7-10 times, repeated use.



PCB Depaneling Machine Specifications:

Model SMTAD5
Machine Dimension L740*W550*H460
Max Cutting Length 400mm
PCB Material FR4, MCPCB
Cutting Speed 300mm/s or 500mm/s
PCB Thickness 0.6-2.0mm
Power 220/110V
Machine Weight 60kgs

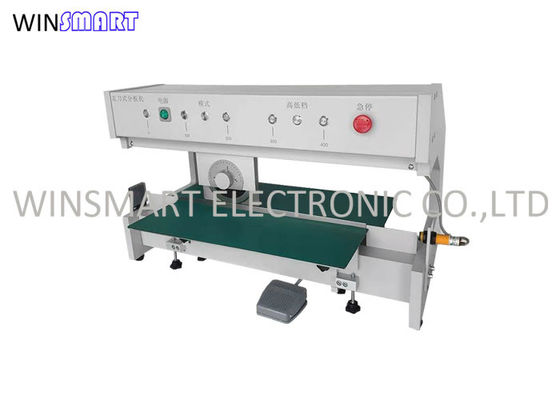

PCB Depaneling Machine Photo:

automatic pcb depaneling machine
