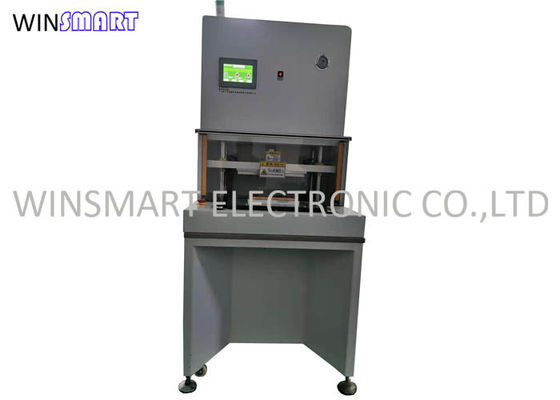

3 Ton Flex PCB Punching Machine Cylinder Driven Mode Without Noise

Description
Precision: ±0.05mm Voltage: 220V
New: Yes Power(w): 500W
Cycle Time: 10 Seconds Name: Flex PCB Punching
High Light:

Precision Flex PCB Punching Machine

,

Cylinder Driven PCB Punching Machine

,

3 Ton Pcb Depaneling Equipment

3Ton Flex PCB Punching Machine Cylinder Driven Mode Without Noise





Flex PCB Punching Machine Function:

Punching is a process where single PCBs are punched out of the panel through the use of special fixture. It is a two-part fixture, with sharp blades on one part and supports on the other. The production capacity of such a system is high, but fixtures are quite expensive and require regular sharpening.



Flex PCB Punching Machine Features:

1. Compact structure, strong rigidity, simple and safe operation.

2. Many kinds of molds can be replaced, and it is convenient and easy to change molds.

3. The lower mould can be in and out automatically, so it is convenient to take and place the products, and the finished products can fall into the drawer.

4. To minimize the internal stress during cutting and avoid tin crack.

5. It can be used for punching special-shaped FPC circuit board, rigid PCB board, flex-rigid bonding board and aluminum boards.

6. Short dividing period and high efficiency.



Flex PCB Punching Machine Specification:

Working area 350*240mm
Working pressure 0.45-0.7Mpa
Cutting precision ±0.05mm
Cycle time 7-15 seconds
Output 3-20T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property

LCD display, Automatically records the number of

processed products, automatic punching

Transmission port International standard
Operation Language English
Power 380/220V
Machine dimension 800x750x1700mm
Machine weight 600kgs



Customized Die Tooling Photo:
