Product Details:
|
PCB Thickness: | 0.8-1.2mm | CE Approval: | Yes |
---|---|---|---|
Voltage: | 220V/110V | Multi-blade: | 3-11 Sets |
Service: | On-site Installation And Training Is Available | Name: | V Cut PCB Depanelizer Machine |
Highlight: | Multi Blade PCB Depaneling Machine,Conveyor PCB Depaneling Machine,1.2mm Pcb V Cut Machine |
V Cut PCB Depanelizer Machine Multi-blade PCB Cutter With Conveyor Loading
Multi-blade PCB Depanelizer Description:
The multi-blade PCB depaneling machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time. All blades are made of endurable SKD11 high speed steel.
PCB clamping and conveying system ensure precise separating without deformation and burrs.
The multi-blade PCB depaneling machine adopts touch screen and PLC control system which can monitor production information.
Full english operation interface, easy to operate.
Multi-blade PCB Depanelizer Features:
1. It can cut many boards with multiple sets of knives work at the same time.
2. The knife flywheel is adjustable as a whole from 0 to 5mm
3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7. Thickness range of PCB: 0.8-3.5mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9. The machine adopts multiple blade to separate boards with simple operation and high efficiency.
Multi-blade PCB Depanelizer Advantages:
1. Fast speed
2. High productivity
3. Small footprint
PCB Depanelizer Specification:
Max cutting length | No limit |
Min cutting length | 100mm |
Max panel width | 220mm |
Custom cutting width | 300mm |
Min PCB width | 8mm |
PCB thickness | 0.8-3.5mm |
Feeding speed | 0-500mm/s |
Working tem. | 10-35℃ |
Blade material(auto-lock function) | Imported high precision steel |
Storge tem. | -20-50℃ |
Voltage | 110-220V |
Dimension | 2160*570*1050mm |

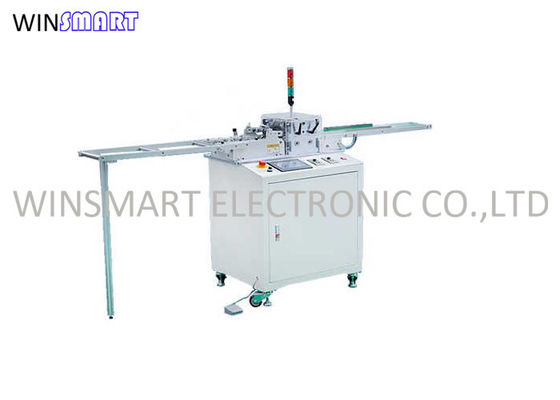

PCB Depanelizer Photo:
