Product Details:
|
| Thermode: | Customized Made | Fixture: | Customized Made |
|---|---|---|---|
| Temperature Accuracy: | ±2°C | After-sale Service: | Online Support |
| Name: | Hotbar Soldering Equipment | ||
| High Light: | Dual Thermode Heads Hot Bar Soldering Equipment,2200W Hot Bar Soldering Equipment,CCD Monitor Automatic Solder Machine |
||

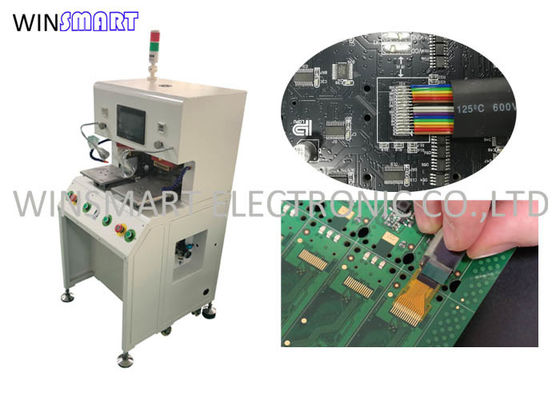

High Volume Production Hotbar Soldering Equipment with Dual Thermode Heads
Hotbar Soldering Equipment Description:
In this selective soldering process, an inductively heated, temperature control thermode in the shape of the joint to be formed is placed from the top on the leads of the component to be joined. The temperature of the stamp transfers sufficient temperature to melt the solder. Pressure is supplied throughout the whole process, to prevent components to move during the cool down. The heating element is heated and cooled for each connection. Solder is found on the pad already in the form of remelted solder depots. Only a small amount of flux needs to be added.
Hotbar Soldering Equipment Specification:
| Machine size | 660×620×1260mm |
| Working area | Max 150*150mm |
| Machine weight | 120Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Applications:
For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB
