Product Details:
|
| Cutting Stress: | Low | Blade Clearance: | Max 2mm |
|---|---|---|---|
| PCB Thickness: | 0.4-5mm | Blade: | 330mm(could Be Customized) |
| Certificate: | Approval | Name: | V Cut Pcb Cutting Machine |
| High Light: | Blade PCB Depaneling Machine,3mm Thickness PCB Depaneling Machine,Customizable Pcb V Cut Machine |
||

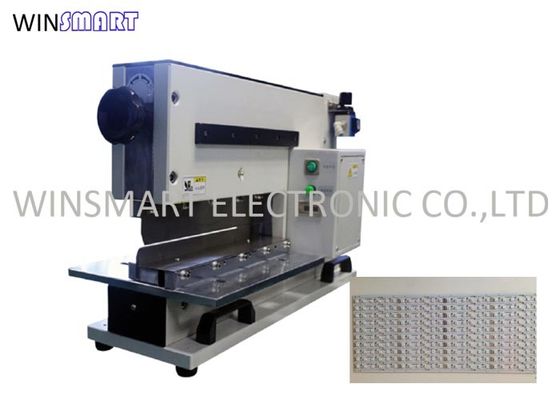

Customizable V Cut PCB Cutting Machine Min 3mm Thick Blade PCB Cutter
PCB Cutting Machine Overview:
This v cut pcb cutting machine is widely used in modern PCB industry.
We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting
and laser cutting solutions.
PCB Cutting Machine Principle:
The v cut pcb cutting machine uses two linear blades to separate boards with less stress, like a scissor.
And operator cannot mis-feed boards.
It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.
PCB Cutting Machine Advantages:
1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5. Blades can be re-sharpened
6. Cutting stress is less than 500 uE.
PCB Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs |
PCB Cutting Machine Details:
1. Two linear blade design. Lower cutting stress, meet strict requirements for precise boards less than 300 ustrain.
2. Max 2mm blade clearance, ensure that operator fingers cannot insert it for safe production. And it is easy to adjust blade clearance by the rotation knob.
3. Noise and dust free. Counter function shows cutting times to remind chekcing blade sharpness.
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We will provide the consumable parts at an resonable price.
4. 24 hours x 7days online service, free technical support.
5. Machine has been tested before delivery.
6. We have manual instruction and Guiding Videos for installation, operation and machine's using and maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
Shipping & Package:
1. DHL/FedEx/UPS/TNT Express
2. Air
3. Railway
4. Ocean
5. Truck
