Product Details:
|
| Usage: | Welding | Weight: | 62kgs |
|---|---|---|---|
| Voltage: | 220V/110V | Temperature Accuracy: | ±2°C |
| After-sale Service: | Engineers Available To Service Machinery Overseas | Name: | Canon Ink Cartridge Welding Machine |
| High Light: | Ink Cartridge Hot Bar Soldering Machine,Cylinder control Hot Bar Soldering Machine,50hz Pcb Soldering Machine |
||
HP / Canon Ink Cartridge Welding Machine Hot Bar Soldering Equipment
HP / Canon Ink Cartridge Welding Machine Functions:
This ink cartridge welding machine is to heat two parts with pre coated flux and tin to a temperature sufficient to melt the solder (melting point of lead-free solder: 217 ℃). After cooling and curing, the two parts form a permanent electrical and mechanical connection through the cured solder. The ink cartridge welding machine is used widely for Canon ink cartridge repairing to save cost for manufacturer.
HP / Canon Ink Cartridge Welding Machine Introduction:
Usually, we can't use SMT + reflow furnace for welding devices. Originally, we can use constant temperature soldering iron for manual welding, but manual welding has some defects, such as inconsistent operation proficiency, uneven operation, even false welding or damaged products. The pulse hot press is different from the constant temperature soldering iron. The pulse hot press can reach the required temperature at the moment of power on. Once there is no voltage at both ends of the pressure head, the air cooling can quickly reach the room temperature, and the pressure head is flat, so the welded products have the same appearance, stable yield and simple operation.
HP / Canon Ink Cartridge Welding Machine Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4. Closed Loop PID temperature control with clearly visible LED display.
5. Soldering time can be programmable and is triggered by temperature.
6. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7. Programmable pressure switch with LCD display for precise force control.
8. CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.
HP / Canon Ink Cartridge Welding Machine Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |

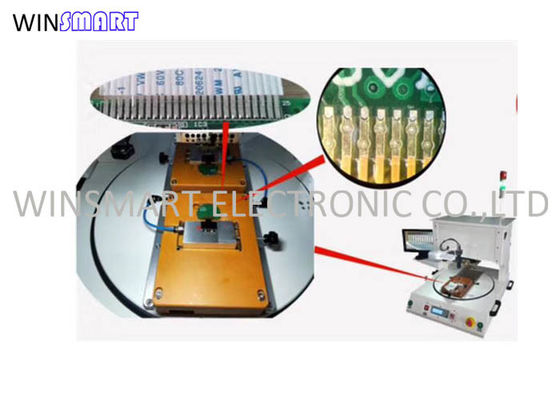

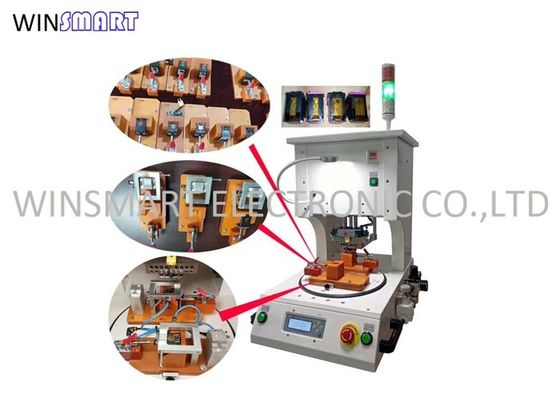

Customers' Applications:
HP / Canon Ink Cartridge Welding Machine Paratmeter:
| Temperature range | 50℃ to 500℃ |
| Temperature accuracy | ±1°C |
| Bond timer | 0-12 seconds |
| Bond air pressure | 0.4-0.6MPa |
| Pressure accuracy | ±0.05MPa |
| Max bond force | 1100N |
