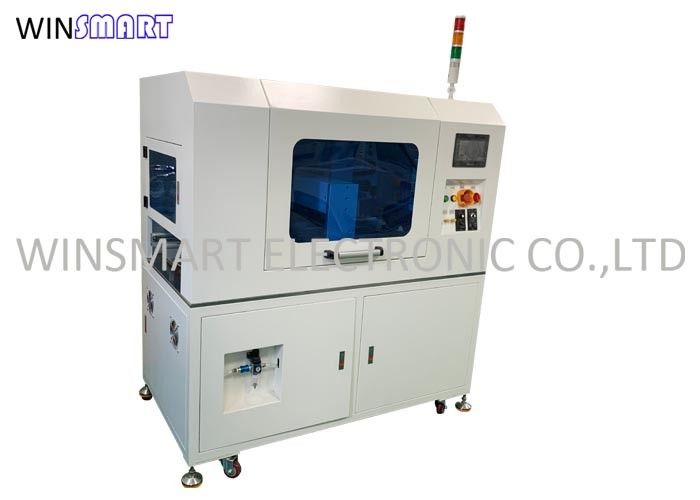

Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling

Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling
Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling
Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling

Large Image :  Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTD12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling

Description
CE Approval: Yes Original: 100% New
Voltage: 220V/110V Min Panel: 122x12mm
Max Panel: 300x300mm Name: Inline PCB Separator
High Light:

Inline PCB Separator

,

Mitsubishi PLC Control PCB Separator

,

1800W PCB Depaneling Cutter

Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling





Inline PCB Separator Functions:

1. This machine is used for PCB board depaneling after inserter.

2. It has the functions of automatic feeding and automatic loading, and the machine is easy to operate.

3. The setting of each parameter ensures the consistency of the board feeding and the board depaneling.

4. Precision stepper motor and SMC pneumatic components are used, with high repeatability.

5. Using Mitsubishi PLC and Taiwan touch screen, the operation interface is simple.

6. Efficiency: 15s / PC (150x150mm, 8 blade sets).

7. Safety sensors in working area.



Inline PCB Separator Features:

1. A single group of multiple cutters can be divided automatically, and different cutters can be made according to different products.

2. Equipped with acrylic cover to ensure safety.

3. The electrical control part can be selected in the man-machine interface, convenient to open or shield.

4. There is a dust collecting tray under the knife mold.

5. Adopt square welding frame, sheet metal sealing plate, steel paint baking on the surface.

6. Suitable for all V-groove panels.

7. Depaneling material: FR, aluminum



Inline PCB Separator Cutting Process:

Step 1: The upper board mechanism sends the PCBA to the predetermined track, the transport track sends the PCBA to the top of the lower straight knife, the lower straight knife rises, the upper straight knife moves and cuts in the Y direction until all V scoring lines in the Y direction are cut.

Step 2: The separated boards cut by the Y direction flows to multiple groups of multiple cutters through the track, and the PCB cut in the X direction is finished at one time.

Step 3: The single separated PCB falls on the discharge conveyor belt and flows into the back work station.

Step 4: There is a vacuum cleaner under the cutter die of the machine to absorb the dust.



Inline PCB Separator Details:

Multi-function Inline PCB Separator Machine For V-cut and Tab PCB Depaneling 0



Inline PCB Separator Specification

Machine Dimension Name Inline V-Cut PCB Separator
Dimension 1500*800*1500mm
Weight 600kgs
Color White
Usage Requirements Power Supply AC220V, 1800W
Air Supply 0.6MPa
Environment Clean and dry, avoid humidity or high temperature
Min distance between component and scoring line 1.5mm
PCB Panel Range 12x12mm – 300x300mm
Feeding door adjustment Fixed front side, adjutable back side
Max component height Upper 35mm, bottom 20mm
Software PLC Local brand
Parameter setting Setting on touch screen
Storage Available for 50 programs
Touch screen Taiwan brand
Sensor Omron
Blade Spec Material Japan high steel
Angel 10-30 degree
Life time 3,000,000 times
Knife mold precision 0.1mm
Replace knife mold time 60 minutes
Other Function Wrong operation protection Sensor, software
Safe protection Emergency stop switch
Power and gas cut off function Yes
Self check function Start up time monitoring, capacity monitoring, equipment fault information and automatic exclusion system
