Product Details:
|
| Precision: | ±0.05mm | Voltage: | 220V |
|---|---|---|---|
| New: | Yes | Power(w): | 500W |
| Cycle Time: | 10 Seconds | Name: | FPC PCB Punching |
| High Light: | Cylinder Driven PCB Punching Equipment,0.05mm Precision PCB Punching Equipment,FPC Punching Machine |
||

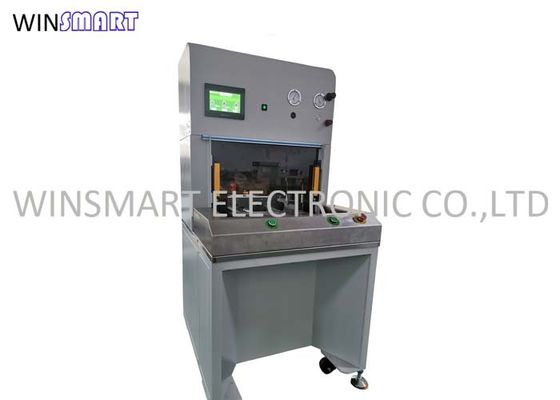

15Ton FPC PCB Punching Equipment With CE Approval and Cylinder Driven
15Ton FPC PCB Punching Equipment Features:
1. Compact structure, strong rigidity, simple and safe operation.
2. Many kinds of molds can be replaced, and it is convenient and easy to change molds.
3. The lower mould can be in and out automatically, so it is convenient to take and place the products, and the finished products can fall into the drawer.
4. To minimize the internal stress during cutting and avoid tin crack.
5. It can be used for punching special-shaped FPC circuit board, rigid PCB board, flex-rigid bonding board and aluminum boards.
6. Short dividing period and high efficiency.
15Ton FPC PCB Punching Equipment Specification:
| Working area | 350*240mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 15T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Power | 380/220V |
| Machine dimension | 800x750x1700mm |
| Machine weight | 600kgs |

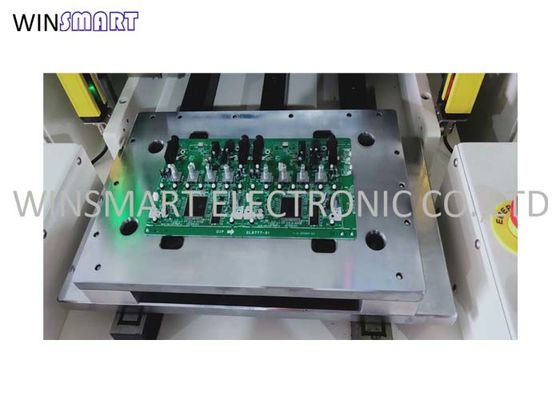

Clients' Application:
PCB Punching Machine Packaging:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Lock the wooden case
PCB Punching Machine Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make die tooling and test it with the punching machine.
