Product Details:
|
| PCB Material: | FR1, FR4, CEM1, CEM3, MCPCB | PCB Thickness: | 0.4-5mm |
|---|---|---|---|
| Max Component Height: | 70mm | Stress: | Less Than 500ustrain |
| Certificate: | CE | Name: | PCB V Groove Cutting Machine |
| High Light: | MCPCB PCB V Groove Cutting Machine,CEM3 PCB V Groove Cutting Machine,CEM1 PCB V Groove Cutter Machine |
||

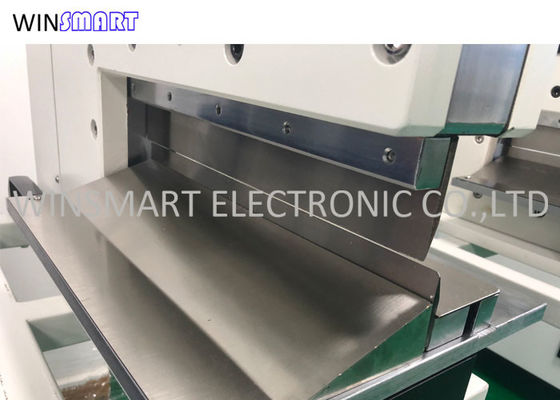

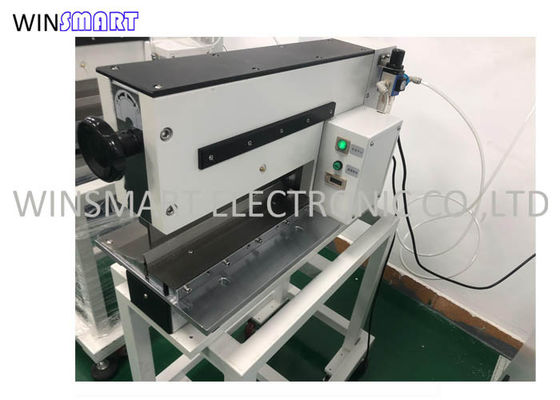

PCB V Groove Cutting Machine with Two Linear Blades Allow Max 70mm Components
Parameters:
 |
D=0.6~1.5mm H=40mm E=0.5mm |
| Emin=0.3mm | |
| Hmax=45mm | |
| Max cutting length mm | 330 |
| Air Pressure MPa | 0.4~0.6 |
| Power Supply VAC | 220V/110V |
| Weight Kg | 160 |
Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
Features:
1. Dual V shape blades for a perfect board cut without bending or tension.
2. Pneumatic footpedal control.
3. Shears boards safely with parts as close 0.02" to score line, including ceramic capacitors.
4. The system only allow correct board placement to avoid mistakes.
Spare Parts Available:
Linear blades replacement
Blade resharpening service available.
Installation:
1. Machine is carried by forklift
2. Machine to be set on smooth and stable.
3. Connect air source, gage tuned 0.4~0.6Mpa
4. Connect to AC power as per requirement
5. Connect foot switch to mini socket
