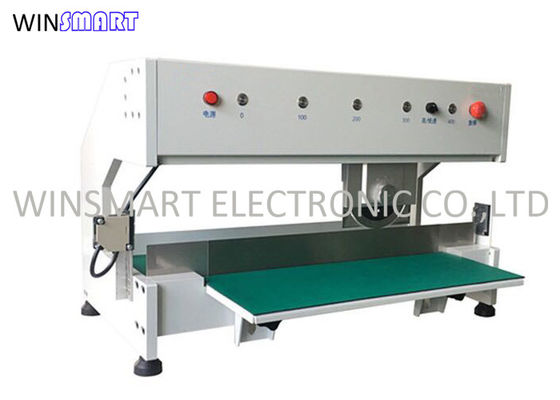

MCPCB FR4 PCB V Groove Cutter With Max 400mm Cutting Length

MCPCB FR4 PCB V Groove Cutter With Max 400mm Cutting Length
MCPCB FR4 PCB V Groove Cutter With Max 400mm Cutting Length

Large Image :  MCPCB FR4 PCB V Groove Cutter With Max 400mm Cutting Length

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTAD5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

MCPCB FR4 PCB V Groove Cutter With Max 400mm Cutting Length

Automatic: Yes Power: 110V Or 220V
Cutting Length: 400mm Blade Type: Circular + Linear Blade
Warranty: 1 Year Name: PCB V-Groove Cutter
High Light:

FR4 PCB V Groove Cutter


MCPCB PCB V Groove Cutter


FR4 PCB Depaneler

FR4 PCB V-groove Cutter PCB Depaneler Max 400mm Cutting Length



V-cut PCB Depanelizer Application:

1. Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...

3. Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.



V-cut PCB Depanelizer Specs:

Model SMTAD5
Machine Dimension L740*W550*H460
Max Cutting Length 400mm
PCB Material FR4, MCPCB
Cutting Speed 300mm/s or 500mm/s
PCB Thickness 0.6-2.0mm
Power 220/110V
Machine Weight 60kgs



V-cut PCB Depanelizer Features:

Lower cutting stress to protect PCBs.

Blade movement to protect components from damage.

Separating speed is adjusted by a rotary knob.

There is safe sensor to ensure safe operation

Full-featured, flexible LCD

Optional conveyor belt

Solve less 1.0mm "V" grooves separating

"V" groove guide device can adjust the vertical height to fit different thickness of PCBs

Blades could be re-sharpened

Blades could be customized as customers’ request


Warranty Period and Service Scope:

The equipment has been debugged and checked before leaving the factory, and the company will guarantee its use within the following conditions.


1. Warranty period

One year after leaving the factory

2. Service scope

During the warranty period, the company will repair the fault free of charge, but the following conditions will not be covered by the warranty.

1. Use consumables and components not specified by the company.

2. Improper use or maintenance by operators.

3. Normal consumption of consumables.

4. Other natural disasters.


Re-sharpened Blades:

Blade could be sharpened 2-3 times



Put rust prevention oil to blades when the machine is not used

After working 100km(about 60 days),needs to put lubricating oil to the eye of the slider.

Use Mobil Grease MP or lubricating oil
