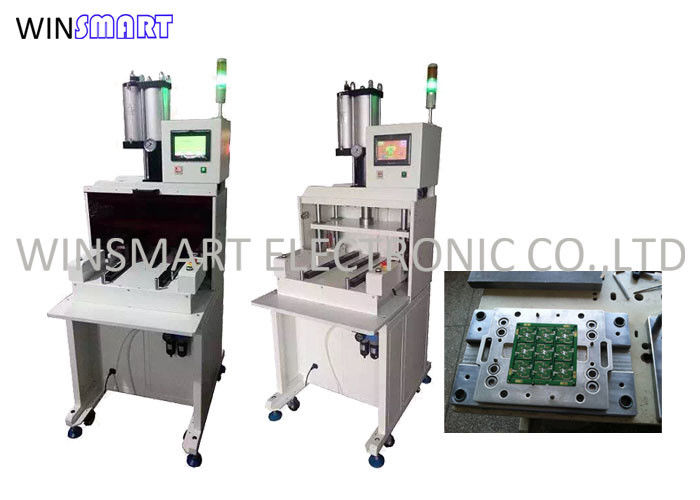

Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine

Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine
Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine
Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine

Large Image :  Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine

Product Details:
Place of Origin: China
Brand Name: Winsamrt
Certification: CE
Model Number: SMTP300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets

Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine

Description
Precision: ±0.05mm PCB Size: 220x320mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power(w): 500W
Warranty: 1 Year Name: Flexible PCB Punch
High Light:

Flexible PCB Punching Machine

,

Flexible PCB Punching Machine

,

FR4 PCB Pneumatic Punching Machine

Flexible PCB Punch Machine Covering FR4, FPC and Aluminum Boards



Advantages:

1. Pneumatic, environmental protection

2. High efficiency, suitable for high volume PCBs

3. Security door protection, ensure safe production



Technical Parameters:

Air pressure 0.4MPa-0.7MPa
Power source 220VAC
Power 100W
Contribute 10T
Machine dimension 770X910X1940
Structure lower mold longitudinal movement, vertical movement of upper mold
Weight 700KG


Specification:

Working area 460*320mm
Working pressure 0.45-0.7Mpa
Cutting precision ±0.05mm
Cycle time 7-15 seconds
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property

LCD display, Automatically records the number of

processed products, automatic punching

Transmission port International standard
Operation Language English
Stroke 50MM
Mold height 170MM
Power 380/220V
Fuse 3A
Machine dimension 820x740x1750mm
Machine weight 680kgs



Features:

1. This punching machine is specially designed for cutting and punching of all kinds of panels with molds, such as FPC and PCB hard board. It can avoid all the problems caused by manual pulling, folding, pliers, shearing, and so on. Flash and other undesirable phenomena.

2. According to different products or die toolings, arbitrarily adjust the punching speed, punching pressure and punching time.

3. Easy to replace die toolings, touch screen has die tooling replacement password to ensure safty production.

4. Vertical movement of lower mold for easy loading and unloading panel

5. Using two-hand buttons synchronization (1 second) to control, to eliminate human security risks

6. Use clean gas, no oil, low power, energy saving, easy maintenance, speed and output stability.

7.Auto or manual mode is optional, computer couting and program combination, the same day output and total output record at the same time, convenient statistics, and the quasi-quasi-and efficient

8. Pneumatic technology, an air compressor can work for more than one punch, normal use and post-maintenance costs lower than other types of punching machine.

9. Has stop working and alarm function due to air pressure issue, to ensure adequate power& quality.



Installation(Non-professionals prohibit operation)

1. Handling (the machine must use forklifts or forklift handling)

2. Electrical Installation: Connect gas and power source

3. Connect gas source, open hand slide valve, lifting the valve cover to rotate the cover to adjust air pressure to be 0.6MPa,then press down the cover



PCB Punching Machine Details:

Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine 0

Pneumatic FR4 FPC Aluminum Flexible PCB Punching Machine 1
