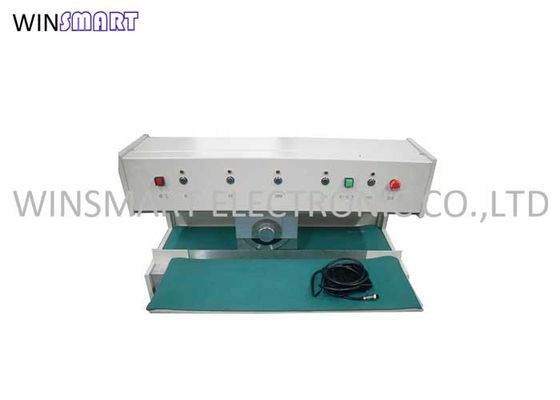

Adjustable Speed 220V 110V PCB Depanelization Machine

Brand Name:	Winsmart
Model Number:	SMTAD5
MOQ:	1 set
Price:	USD1-10000/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

PCB Material:

FR4, MCPCB

Power:

110V Or 220V

Cutting Length:

400mm

Cutting Speed:

Adjustable

Warranty:

1 Year

Name:

PCB Depanelization

Supply Ability:

200 sets per month

Highlight:

Adjustable Speed PCB Depanelization Machine

110V PCB Depanelization Machine

220V PCB Separator Machine

Product Description

Low Cost Automatic PCB Depanelization Equipment PCB Separator

V-cut PCB Depanelizer Application:

1. Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...

3. Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.

V-cut PCB Depanelizer Specs:

Model	SMTAD5
Machine Dimension	L740W550H460
Max Cutting Length	400mm
PCB Material	FR4, MCPCB
Cutting Speed	300mm/s or 500mm/s
PCB Thickness	0.6-2.0mm
Power	220/110V
Machine Weight	60kgs

V-cut PCB Depanelizer Features:

1. Lower cutting stress to protect PCBs.

2. Blade movement to protect components from damage.

3. Separating speed is adjusted by a rotary knob.

4. There is safe sensor to ensure safe operation

5. Full-featured, flexible LCD

6. Optional conveyor belt

7. Solve less 1.0mm "V" grooves separating

8. "V" groove guide device can adjust the vertical height to fit different thickness of PCBs

9. Blades could be re-sharpened

10. Blades could be customized as customers’ request

Warranty Period and Service Scope

The equipment has been debugged and checked before leaving the factory, and the company will guarantee its use within the following conditions.

1. Warranty period

One year after leaving the factory

2. Service scope

During the warranty period, the company will repair the fault free of charge, but the following conditions will not be covered by the warranty.

1. Use consumables and components not specified by the company.

2. Improper use or maintenance by operators.

3. Normal consumption of consumables.

4. Other natural disasters.
