Product Details:
|
| Heads: | 1 | Tables: | 2 |
|---|---|---|---|
| Power: | 110V/220V | Locking Speed: | 2 Seconds Per Screw |
| Type: | Suction | Name: | Screwdriver Machine |
| High Light: | Continuous Feeding Electric Screwdriver Machine,2 Tables Electric Screwdriver Machine,Continuous Feeding Screwdriver Electric Machine |
||

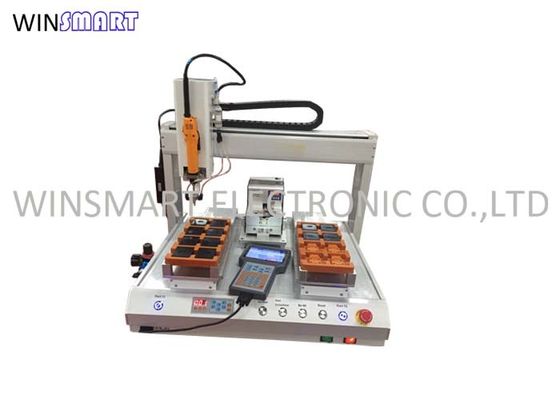

Electric Screwdriver Machine With Auto Screw Feeder Device for Factory Supply
The automatic screw machine is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries
Features:
|
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
|
||||
|
2. High degree of automation, easy operation which the staff can master and debug quickly.
|
||||
|
3. With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
|
||||
|
4. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management..
|
||||
|
5. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
|
||||
|
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
|
||||
|
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
|
Specifications:
| Model | SMTSD211 |
| Moving range | 500X*300Y1*300Y2*100Zmm |
| Processing range | 180X*300Y*110Zmm |
| Repetitive accuracy | ±0.02mm(X/Y/Z) |

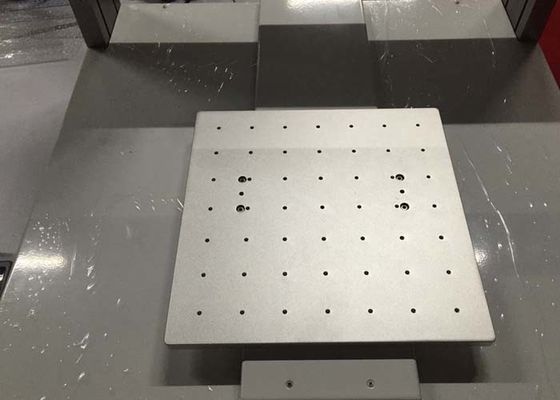

| Fixture platform | 2 |
| Screw head | 1 |
| Applicable screw | M1.0-M5.0 |
| Screw conveying method | Vacuum suction |
| Driving mode | precision stepping motor+precision lead rail |
| Axes of motion | 4 axes |
| Display mode | LCD |
| Control system | special controller for screwdriver machine |
| Program record capacity | 9999 |
| Programming interface | teaching pandent |
| Air pressure | 4~6kg cm2 |
| Vltage | AC220V |
| Dimensions | 680X500X725mm |
| Weight | 75kg |
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make fixture and test it with the punching machine
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
