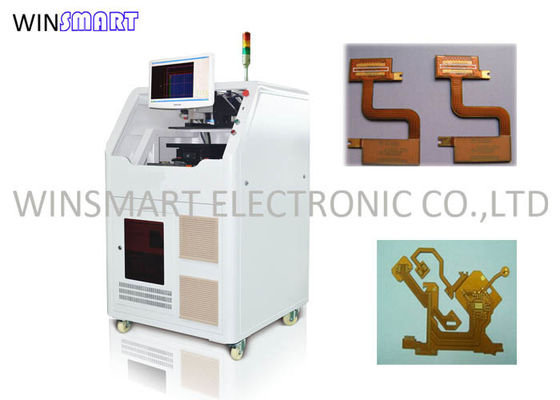

5um Precision FPC Laser Cutting Machine With Small Footprint

Brand Name:	Winsmart
Model Number:	SMTL300
MOQ:	1 set
Price:	USD1-150K/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Cutting Precision:

Mechanical Stress:

Working Area:

300x300mm

Scan Range:

40x40mm

Laser:

UV/Green

Name:

FPC Laser Cutting Machine

Supply Ability:

100 sets per month

Highlight:

FPC Laser Cutting Machine

5um Precision Laser Cutting Machine

FPC Laser Depaneling Machine

Product Description

Flexible Printed Circuit Board FPC Laser Cutting Machine With Small Footprint

Features:

1. No mechanical stress

2. Lower tooling costs

3. Higher quality of cuts

4. No consumables

5. Design versatility-simple software changes enable application changes

Specification:

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Source	Optowave UV 15W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	300mmx300mm(Customizable)
Scanning Speed	2500mm/s (max)
Working field	40mmх40mm

Cutting Result:

5um Precision FPC Laser Cutting Machine With Small Footprint 0

Applications:

Depaneling flex and rigid PCBs

Cover layer cutting

Cutting fired and unfired ceramics

PCB engraving
