Economic CNC PCB Router With Top Vacuum Cleaning System

Economic CNC PCB Router With Top Vacuum Cleaning System
Economic CNC PCB Router With Top Vacuum Cleaning System

Large Image :  Economic CNC PCB Router With Top Vacuum Cleaning System

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR09
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

Economic CNC PCB Router With Top Vacuum Cleaning System

Vacuum Cleaner: Yes Ionizer: Yes
PCB Thickness: 0.8-3.0mm Routing Bit: Dia 0.8-3.0mm
Cutting Precision: ±0.05mm Feature: Economic
New: Yes Product Name: CNC PCB Router
High Light:

Economic CNC PCB Router


Top Vacuum Cleaning CNC PCB Router


Top Vacuum Cleaning PCB CNC Router

CNC PCB Router Machine Top 3HP Vacuum Cleaner System For PCB Depaneling



CNC PCB Router Machine Features:

1. High speed SycoTec spindle

2. High stability, easy maintenance

3. Simple operation, short changeover time

4. Design for small and middle size PCBA

5. Dual working tables

6. Optional top or bottom vacuum cleaning system


CNC PCB Router Machine Advantages:

X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2 sliding tables provide simultaneously in-and-out movement to reduce the tack time for better productivity.

AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.


CNC PCB Router Machine Parameters:

Dimensions(W*D*H) 1250mm*1650mm*1450mm
Weight 750KG
Height offset 60~110mm
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 650mm*560mm*50mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 320*320mm
PCB thick (max) 5mm
Rigidity fixturing Customized make fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button



CNC PCB Router Machine Includes:

Vaccum cleaner x 1pc

SycoTec spindle x 1pc

Routing bit x 10pcs

Instruction manual x 1pc

Operation videos

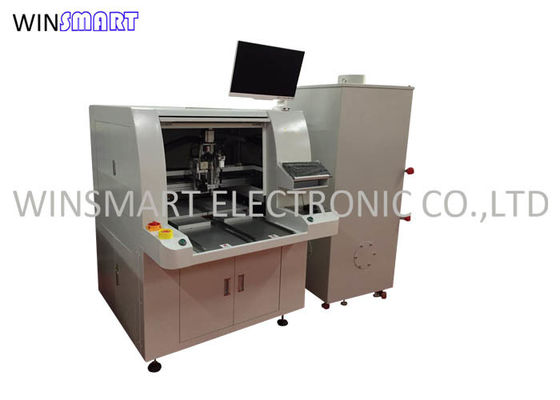

CNC PCB Router Machine:
