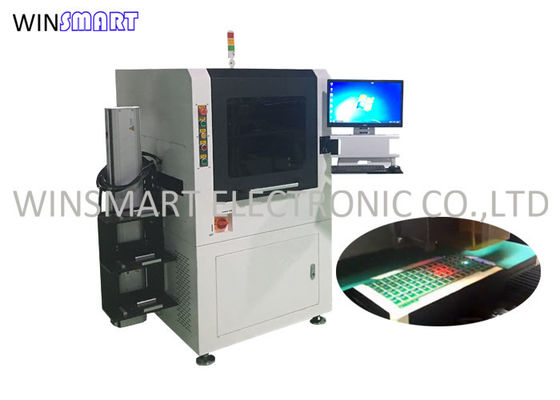

Fully Automatic PCB Laser Cutting Machine

Fully Automatic PCB Laser Cutting Machine
Fully Automatic PCB Laser Cutting Machine
Fully Automatic PCB Laser Cutting Machine Fully Automatic PCB Laser Cutting Machine

Large Image :  Fully Automatic PCB Laser Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTL460
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-150K/set
Packaging Details: Plywood case
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month

Fully Automatic PCB Laser Cutting Machine

Description
Color: White PCB Material: FPC, FR4
Working Area: 350x300mm Height: 900±20mm
Laser Source: UV Laser Name: PCB Laser Cutting Machine
High Light:

Fully Automatic PCB Laser Cutting Machine

,

1μm PCB Laser Cutting Machine

,

0.7Mpa Laser PCB Depaneling Machine

Full Automatic PCB Laser Cutting Machine For 1.6mm FR4 Printed Circuit Board





Full Automatic PCB Laser Cutting Machine Instruction:

PCB depaneling and singulation laser systems are gaining popularity—especially as circuit board complexity and component ratios continue to rise. Microelectronics and medical device manufacturers require close tolerances and minimal debris—this is where laser technology shines



Full Automatic PCB Laser Cutting Machine Performance:

1.Dimension:1600mmx1500mmx1800mm(LxWxH)

2. Capacity UPH: single head 1.5-2.0K(according to sample testing)

3. Repeat accuracy:±0.003mm

4. CCD accuracy:±0.005mm

5. Laser head:UV15W

6. Cutting precision:+/-0.03mm

7.Cutting yield:FR4 99.9%

8. Operator:1 person

9. Track height:950mm±100(could be customized made)

10. Power supply:220V/15A/50Hz,0.5-0.7Mpa



Full Automatic PCB Laser Cutting Machine Specification:

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Source Optowave UV 15W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 350mmx300mm(Customizable)
Scanning Speed 2500mm/s (max)
Working field 40mmх40mm



PCB Feeding and Loading:

1. Use magazine lifting mechanism + X-Z manipulator + fixture plate grasping mechanism to realize automatic feeding

2. The motor manipulator is used to realize the back and forth movement, and the product grasping function is realized by the electric Z axis and the mechanical claw function. Set waste collection area at the same time to realize automatic separation of single PCBA and waste

3. The loading mechanism of the gripper of the loading robot adopts a dual-station mode to realize the synchronous operation of the upper and lower fixture plates and improve the production efficiency.



Waste PCB Removal:

1. The rotary cylinder is used to realize 90-degree back and forth movement, and the vacuum is used to suck the waste frame to realize the function of separating the automatic waste and the base plate.

2. Adopt upper and lower cylinders and vacuum sucker mechanism to achieve accurate grasping of waste frame.

3. The bin is equipped with a radio fiber, which realizes the automatic reminder function of full waste.



For more details, please contact us freely!
