Product Details:
|
| Usage: | PCB Depaneling | PCB Thickness: | 0.4-3.5mm |
|---|---|---|---|
| Spindle Speed: | 60000rpm | Cutting Precision: | ±0.05mm |
| Dual Table: | 310x260mm | Name: | PCB Router |
| Highlight: | PCB Depaneling Router Machine,CE PCB Depaneling Router Machine,CE PCB Router Machine |
||

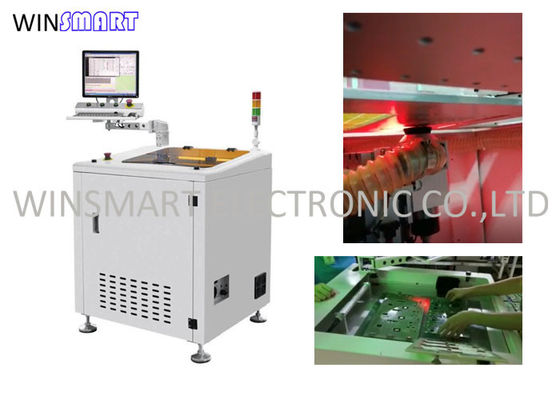

Anti Static Ionizer Curve Cutting PCB Router 0.01mm Positioning Repeatability
PCB Router Function:
Used for routed PCB panel singulation with lower stress.
PCB Router Advantages:
Lower mechanical stress
Precise tooling
High quality of cuts
Less dust
PCB Router Specification:
| Model Number | SMTR17 |
| Machine Size | 850(L) x 750(W) x 1455(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 410x460mm (single table), 260x310mm(dual table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4015HY |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |
PCB Router Features:
1. Optional single/dual platform
2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 460mm boards
5. Flexible for different type of products
6. Open type platform for LD/ULD and auto upgrade with robot
PCB Router Bottom Side Cutting:
