|PCB Type:||Tab PCB Panels||PCB Thickness:||0.4-3.5mm|
|Max PCB:||410x460mm||Name:||PCB Depanelizer|
Bottom Cutting PCB Depaneling Router Machine,
Dual Table PCB Depaneling Router Machine,
Left Hand Routing PCB Depaneling Machine

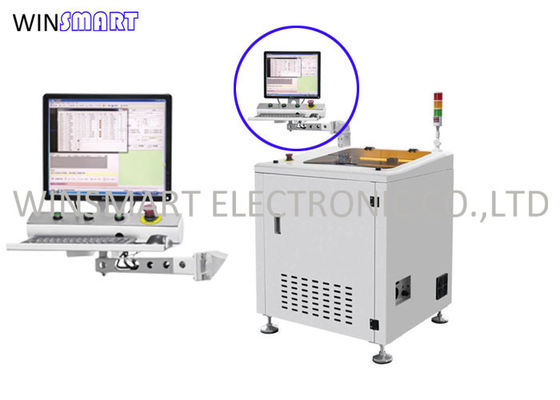

Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine
PCB Depanelizer Function:
This PCB depanelizer PCB router is used for routed PCB panel singulation with lower stress.
And it uses a dust-free cutting technology to ensure that the separated board is very clean and does not need any other tools to clean the dust after cutting. This seemingly simple operation has been cleverly understood and designed by many technicians.
PCB Depanelizer Description:
This PCB depanelizer PCB router is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of V-cut or punching, improve product quality and reduce scrap rate. This machine adopts latest operating system with man-machine interface. The cutting path can be modified by high pixel CCD teaching and editing, and it can also be modified step by step.
PCB Depanelizer Advantange:
1. Optional single/dual working table
2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 410x460mm boards
5. Workable for max 210x260mm boards for dual tables, and allows this dual tables running for two different PCB depaneling applications
6. Bottom cutting with bottom vacuun cleaning system, dust free
PCB Depanelizer Specification:
|Machine Size||850(L) x 750(W) x 1455(H)mm|
|Max PCB Size||410x460mm (single table), 260x310mm(dual table)|
|PCB Positioning||Customized fixture|
|Programming||Vision teaching, inline programming|
|Cutting Spindle||SycoTec 60000rpm/min(standard)|
|Cooling Type||Self cooling|
|Dust Collection Mode||Bottom collection|
|Routing Bit||0.8-3.0 Diameter, right rotation|
|Control System||Industrial PC|
|Spindle||Germany SycoTec 4015HY|
|Motion Control||4 axis motion control board|
|PCB Type||Routed boards|
|Routing Bit||Left hand|
|Routing Bit Diameter||0.8-2.0mm|
|Routing Bit Life Time||150m|
|Lead screw||C5 grinding screw lead|
|Cutting Way||Bottom cutting|
|Vacuum Cleaner||3HP bottom cleaning system|
|Camera||Germany imaging 40W greay camera|
PCB Depanelizer Features:
1. Computer programming, visual system. Friendly programming software, and it is very easy to make a program without professional training.
2. Allow max 460x410mm PCBA, can work as dual tables for small panels, support 2 different type applications per time.
3. Open working design for loading and unloading, separated control for each working table.
4. Friendly software for easy programming and production.
PCB Depanelizer Dimension:
1. Spare SycoTec spindle
2. Good quality routing bits
3. Customized jig
Routing Bits Setting:
Long life time routing bit can be set by 3 sections to cutting total 150 meters.
After cutting 50 meters, routing bit lower 2mm for next section cutting.
PCB Depanelizer Installation Condition:
1. The PCB depanelizer should be installed in a ventilated and dry place. Do not install it in a place that is easy to corrode or flammable.
2. The PCB router should not be installed in places exposed to sunlight and high heat.
3. Do not place the router in the place with strong vibration and easy collision.
4. Place the router in the designated position.
5. Adjust the level of the equipment with a level instrument, and then tighten the foot cup screw.
6. Connect the hose of the dust collector to the dust collecting port of the router.
7. Connect the power plug of the dust collector with the equipment to confirm the operation direction and dust collection effect. If it is reversed, replace any two of the three power lines.
8. Grounding requirements: connect the router to the ground wire of distribution box separately, and do not connect with other equipment in series.
PCB Depanelizer Application:
It is widely used in electronic manufacturing industries: LED, power supply, computer, automotive, aerospace, toys, medical, etc.
