Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine

Description
PCB Type: Tab PCB Panels PCB Thickness: 0.4-3.5mm
Spindle: SycoTec Cutting Precision: ±0.05mm
Max PCB: 410x460mm Name: PCB Depanelizer
Highlight:

Bottom Cutting PCB Depaneling Router Machine

,

Dual Table PCB Depaneling Router Machine

,

Left Hand Routing PCB Depaneling Machine

Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine





PCB Depanelizer Function:

This PCB depanelizer PCB router is used for routed PCB panel singulation with lower stress.

And it uses a dust-free cutting technology to ensure that the separated board is very clean and does not need any other tools to clean the dust after cutting. This seemingly simple operation has been cleverly understood and designed by many technicians.



PCB Depanelizer Description:

This PCB depanelizer PCB router is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of V-cut or punching, improve product quality and reduce scrap rate. This machine adopts latest operating system with man-machine interface. The cutting path can be modified by high pixel CCD teaching and editing, and it can also be modified step by step.



PCB Depanelizer Advantange:

1. Optional single/dual working table

2. PC and CCD vision system

3. Programming with compensation and dust collection

4. Available for max 410x460mm boards

5. Workable for max 210x260mm boards for dual tables, and allows this dual tables running for two different PCB depaneling applications

6. Bottom cutting with bottom vacuun cleaning system, dust free



PCB Depanelizer Specification:

Model Number SMTR17
Machine Size 850(L) x 750(W) x 1455(H)mm
Voltage 380V/50Hz, 2.5KW
Max PCB Size 410x460mm (single table), 260x310mm(dual table)
PCB Thickness 0.4-5mm
Feeding Mode Manual
PCB Positioning Customized fixture
Programming Vision teaching, inline programming
Cutting Spindle SycoTec 60000rpm/min(standard)
Cooling Type Self cooling
Dust Collection Mode Bottom collection
Cutting Speed 1-100mm/s
Repeat Accuracy ±0.01mm
Routing Bit 0.8-3.0 Diameter, right rotation
Repeat Accuracy ±0.02mm
Control System Industrial PC
Spindle Germany SycoTec 4015HY
Motion Control 4 axis motion control board
PCB Type Routed boards
Routing Bit Left hand
Routing Bit Diameter 0.8-2.0mm
Routing Bit Life Time 150m
Warranty 1 year
Lead screw C5 grinding screw lead
Cutting Way Bottom cutting
Vacuum Cleaner 3HP bottom cleaning system
Camera Germany imaging 40W greay camera
LCD 17 inch



PCB Depanelizer Features:

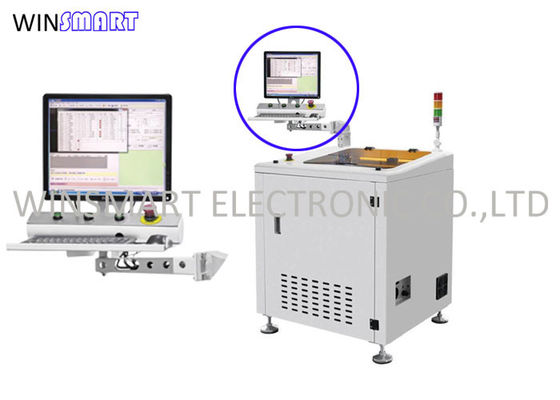

1. Computer programming, visual system. Friendly programming software, and it is very easy to make a program without professional training.

    Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine 0

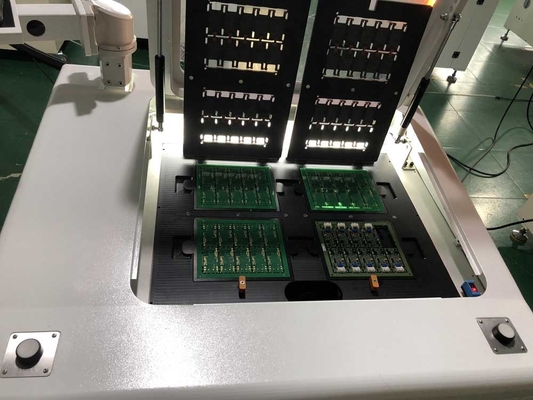

2. Allow max 460x410mm PCBA, can work as dual tables for small panels, support 2 different type applications per time.

    Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine 1

3. Open working design for loading and unloading, separated control for each working table.

    Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine 2

4. Friendly software for easy programming and production.

    Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine 3







PCB Depanelizer Dimension:

Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine 4

Spare Parts:

1. Spare SycoTec spindle

2. Good quality routing bits

3. Customized jig



Routing Bits Setting:

Long life time routing bit can be set by 3 sections to cutting total 150 meters.

After cutting 50 meters, routing bit lower 2mm for next section cutting.

Bottom Cutting Visual CCD System PCB Depanelizer PCB Router Machine 5





PCB Depanelizer Installation Condition:

1. The PCB depanelizer should be installed in a ventilated and dry place. Do not install it in a place that is easy to corrode or flammable.

2. The PCB router should not be installed in places exposed to sunlight and high heat.

3. Do not place the router in the place with strong vibration and easy collision.

4. Place the router in the designated position.

5. Adjust the level of the equipment with a level instrument, and then tighten the foot cup screw.

6. Connect the hose of the dust collector to the dust collecting port of the router.

7. Connect the power plug of the dust collector with the equipment to confirm the operation direction and dust collection effect. If it is reversed, replace any two of the three power lines.

8. Grounding requirements: connect the router to the ground wire of distribution box separately, and do not connect with other equipment in series.



PCB Depanelizer Application:

It is widely used in electronic manufacturing industries: LED, power supply, computer, automotive, aerospace, toys, medical, etc.
