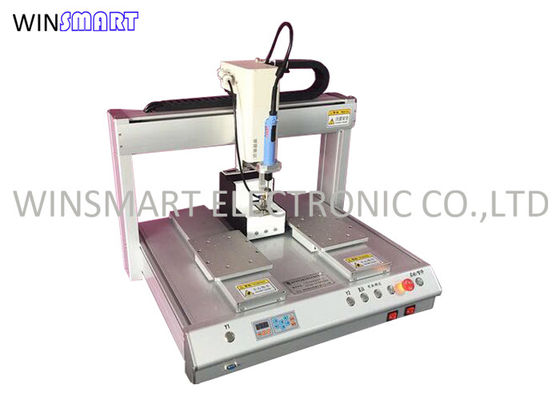

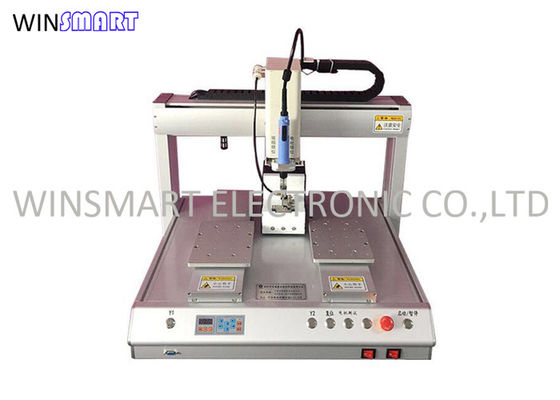

50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine

50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine
50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine 50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine

Large Image :  50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTSD211
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine

Description
Axis: 4 Working Stroke: 500x300x300x100mm
Power: 110V/220V Usage: Screw Fastening
Type: Air Blowing Name: Automatic Screwdriver Machine
High Light:

50HZ Screw Fastening Machine

,

M1 Automatic Screw Fitting Machine

,

50HZ Automatic Screw Fitting Machine

Automatic Screw Fastener Screwdriver Machine For Industrial Screw Locking





Automatic Screwdriver Machine Features:

1. With intelligent detection function, can automatically detect leakage lock, lock, slide tooth, double Y design, and able to work alternately
2. Strong flexibility, the standard universal fixture applicable model of screw lock.
3. Strong commonality, replace the screw conveyor modules can be adapted to M1.0 - M4.0 screw lock.
4. Equipment for small, save space, reduce the plant resources. Easy to put into the production line, and before the standard after the function.
5. Double Y design, alternating operation, maximize production efficiency, production of profit maximization, the lowest cost of production.
6. Application: Especially suitable for all kinds of screw lock pay of consumer electronics, such as calculators, navigation, audio, camera, laptop, tablet PC, learning machine, small home appliance, etc.to learn and use.



Automatic Screwdriver Machine Specifications:

Working Range 500(X)*300(Y1)*300(Y2)*100(Z)mm
Drive mode 3 axis driver
Position Accuracy ±0.02mm
Control System PLC + TP
Screw Feeding absorption type
Operation Method by Programming
Program Memory 999 groups
Voltage 110-220VAC,50HZ
Air Pressure 4-5kg/cm2
Machine Size 620*600*720mm
Machine Weight 65kgs



Robotic Screwdriver Machine Applications:

The automatic screwdriver machine is suitable for automated assembly in the electronics industry such as cameras, mobile phones, hard disks, keyboards, printers, computers, DVDs, home appliances, toys, appliances, communication equipment, electronic processing and assembly,etc. Automobile industry assembly, such as automotive motors, parts assembly, etc.



Usage in different industries:

50HZ Screw Fastening Machine , M1 Screw Lock Automatic Screw Fitting Machine 0
