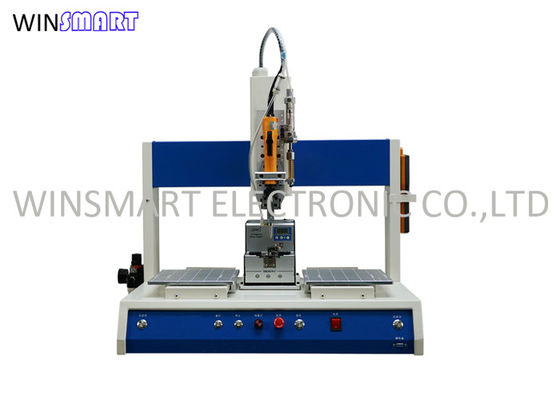

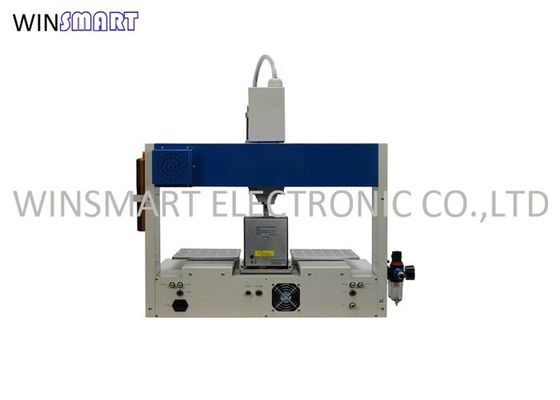

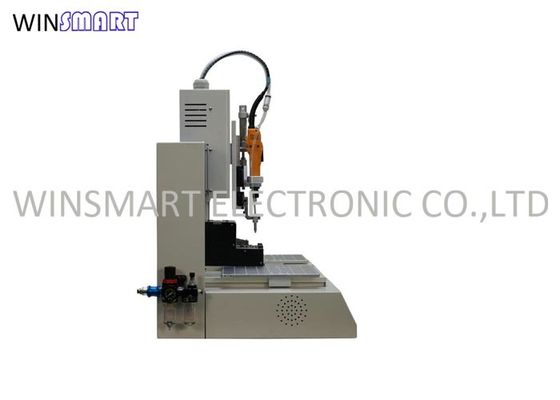

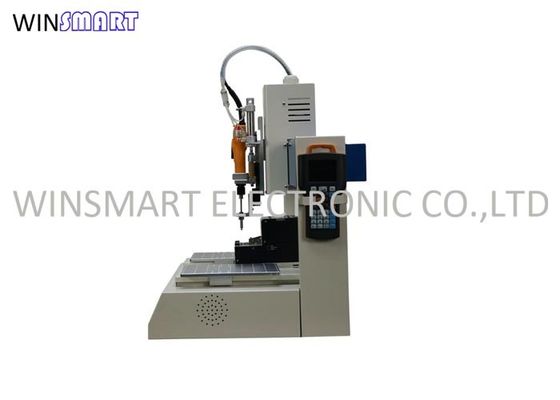

4 Axis Robotic Automatic Screwdriver With Feeder Completely Integrated

Automatic Screw Feeding System Double Platform Robotic Screwdriver Machine

Automatic Screwdriver Machine Overview:

This equipment increases throughput on a variety of assembly applications.

This system is completely integrated and include robot, electric drivers, screw feeder systems.

The controller can store programs.

Automatic Screwdriver Machine Features:

1.With intelligent detection function, it can detect leak lock, floating lock, sliding screws, etc.
2.High versatility, the replacement screw delivery module can be adapted to the M1.0-M5 screw lock
3.High flexibility, standard universal clamp for a variety of models of screw locks.
4.Dual platform design, automatic alternate operation without downtime, fast speed and high efficiency
5.2G storage space, which can store thousands of screwdriving programs, each program supports 9999 screwdriving instructions
6.The utility model adopts the vacuum suction screw method, has good versatility, overcomes the feature that the wind blow screw can not send the length to diameter ratio of 1.2, and overcomes the characteristics that the magnetic suction screw can not take the stainless steel screw.
7.The display adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.

Automatic Screwdriver Machine Specifications:

Automatic Screwdriver Machine Details:

Automatic Screwdriver Machine Advantages:

A dual table screwdriver machine refers to a configuration where two separate screwdriver tables or workstations are integrated into a single machine. Each table operates independently and can perform screw fastening tasks simultaneously. Here are some advantages of using a dual table screwdriver machine:

1. Increased Throughput: With two tables operating simultaneously, a dual table screwdriver machine can significantly increase the throughput or production rate compared to a single table machine. While one table is working on fastening screws on a workpiece, the other table can be prepared for the next workpiece, minimizing idle time and maximizing productivity.

2. Time Efficiency: The dual table configuration allows for parallel processing, reducing the overall cycle time required for screw fastening operations. As one table is completing its task, the other table can start working on the next workpiece immediately. This leads to faster completion of production batches and shorter lead times.

3. Flexibility and Versatility: Dual table screwdriver machines offer enhanced flexibility in production planning and scheduling. Operators can allocate different screw fastening tasks to each table, allowing for a mix of products or variations in screwing requirements. This versatility enables the machine to handle diverse workpieces or product lines efficiently.

4. Redundancy and Reliability: Having two independent tables provides redundancy in case of a malfunction or maintenance requirement. If one table experiences an issue, the other table can continue operating, ensuring production continuity without significant downtime. This redundancy increases the reliability and availability of the screwdriver machine.

5. Space Optimization: Despite having two tables, a dual table screwdriver machine can be designed to optimize space utilization. The machine may have a compact footprint, allowing it to fit within limited factory floor space. This is beneficial for manufacturers with space constraints who still require high-speed screw fastening capabilities.

6. Simplified Workflow: Dual table screwdriver machines streamline the workflow by eliminating the need for separate machines or workstations for screw fastening tasks. Operators can manage and monitor both tables from a central control panel, reducing the complexity of the production line and improving operational efficiency.

7. Scalability: Dual table screwdriver machines offer scalability options for future production needs. As demand increases, additional tables can be added to the machine configuration, expanding the capacity without requiring significant changes to the overall system. This scalability allows manufacturers to adapt to changing production volumes and requirements.

8. Operator Efficiency: With two tables operating simultaneously, operators can handle multiple workpieces concurrently. This improves operator efficiency as they can load and unload workpieces on one table while the other table is in operation. The dual table setup reduces idle time for operators, enabling them to focus on other value-added tasks.

Overall, the advantages of a dual table screwdriver machine include increased throughput, time efficiency, flexibility, redundancy, space optimization, simplified workflow, scalability, and improved operator efficiency. These benefits make it an attractive option for manufacturers seeking higher productivity and faster screw fastening processes in their assembly lines.

Delivery Terms:

1. Ex-work/FOB/CIF/DDU, up to clients

2. Production leadtime: 7-15 days to customized make fixture and test it with the punching machine

Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
