|Driven Mode:||Stepper Motor||Soldering Head:||1|
|Working Stroke:||400(X)400(Y)x80(Z)||Name:||Robotic Soldering Machine|
2 Heads PCB Robotic Soldering Machine,
4 Axis Robotic Soldering Machine,
1 Table PCB Robotic Soldering Machine

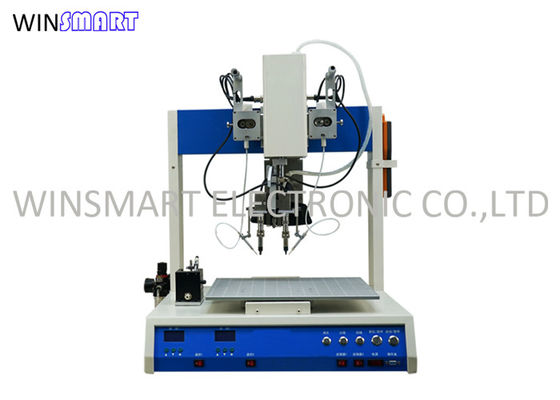

2 Heads 1 Table 4 Axis PCB Robotic Soldering Machine For PCB Welding
Robotic Soldering Machine Overview:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Robotic Soldering Machine Description:
1. Multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),to achieve the 3D space arbitrary solder accurate location.
2. The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job.
3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and professional requirements, the realization of human editing operations.
4. Various of welding way, support spot welding and drag welding, all parameters is setted up by user,meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved together with welding point coordinates, achieve flexible soldering.
5. Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions. Intelligent main control program realizes automation and intelligence
Robotic Soldering Machine Features:
1. Perfect soldering process setting, with spot welding and welding function. Each instruction has independent preheating, tin length, preheating time, welding time, tinning time, lifting height and other solder parameters..
2. Perfect soldering process setting, with spot welding and drag welding function. Each instruction has independent preheating, solder wire length, preheating time, soldering time, tinning time, lifting height and other solder parameters.
3. Support PLT format files, realize direct importing for easier operation.
4. The machine can be run offline or independently, and the welding parameters are saved in the SD card to facilitate parameter copying and saving between devices.
5. 2G storage space, can store several soldering programs, each program supports 9999 soldering instructions.
6. There are two options for solder wire feeding, broken tin function, no broken tin function.
7. The display adopts 320x240 high-resolution color screen, English operation interface, easy to operate.
Robotic Soldering Machine Specifications:
|Driving mode||Stepper motor|
|Solder Wire Spec||￠0.3-1.6mm|
|Number of axes||4|
|Working pressure||0.4~0.6Mpa(No water mist)|
Robotic Soldering Machine Application:
Suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, networks, transformers, cable, FPC / COF soldering, computer motherboards, CABLE, speakers and motors high quality soldering.
