PCB Automatic Robotic Soldering Machine Led Soldering Machine 90Kg

PCB Automatic Robotic Soldering Machine Led Soldering Machine 90Kg

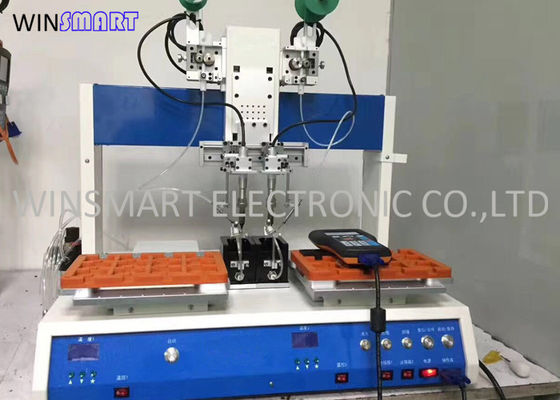

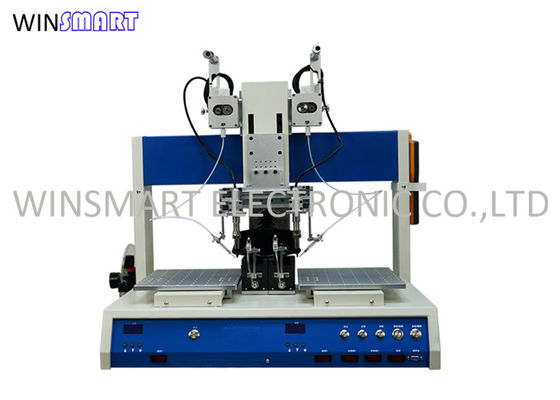

PCB Automatic Robotic Soldering Machine Led Soldering Machine 90Kg PCB Automatic Robotic Soldering Machine Led Soldering Machine 90Kg

Large Image :  PCB Automatic Robotic Soldering Machine Led Soldering Machine 90Kg

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTSR223

PCB Automatic Robotic Soldering Machine Led Soldering Machine 90Kg

Driven Mode: Stepper Motor Usage: PCB Soldering
Fixture: Customized Made Power: 220/110V
Working Stroke: 500(X)x300(Y1)x300(Y2)x80(Z)x360°(R) Name: Automatic Soldering Machine
High Light:

PCB Robotic Soldering Machine


Robotic Soldering Machine 90Kg


Led Soldering Machine 90Kg

PCB Automatic Soldering Machine LED Soldering Machine Weller Heater



Robotic Soldering Machine Features:

1. Contains BASIC interpreter, simple programming, direct handle teaching, you can directly enter the welding point coordinates, but also teach welding position, can reproduce the welding position coordinates.

2. Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.

3. The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.

4. With manual control of tin


Robotic Soldering Machine Introduction:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.


Robotic Soldering Machine Specifications:

Model SMTSR223
Dimension 680*500*720mm
Weight 90Kg
Control PLC
Programming Teaching box
Driving mode Stepper motor
Stroke 300(X)x300(Y1)x300(Y2)x80(Z)
Soldering head 2
Repeatability ±0.02mm(X/Y/Z)
Temp. Range 0-550℃
Solder Wire Spec ¢0.3-1.6mm
Number of axes 4
Working pressure 0.4~0.6Mpa(No water mist)
Power AC110V/220V 300W
Display LCD


Robotic Soldering Machine Configuration:

1. Four-axis welding machine dual Y working platform

2. Handheld teach programmer

3. Heating controller

4. Broken tin controller

5. Solder pen assembly

6. Welding tip

7. Tin out components

8. Smoke purification filter system (optional)


Robotic Soldering Machine Application:

Suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, networks, transformers, cable, FPC / COF soldering, computer motherboards, CABLE, speakers and motors high quality soldering.


Robotic Soldering Machine FAQ:

Q: What is soldering time?

A: About 2 seconds per point.

Q: What kind of soldering tips can you offer?

A: We could customize make suitable shape of soldering tip according to your application.

Q: What kind of heater?

A: Weller brand.

Q: Is it possible to change parameters for only one soldering point?

A: Yes, it is ok.

Q: How to improve soldering effect when trial soldering is not good?

A: It can be improved by solder wire feeding and soldering time adjustment.


Our Advantages:

Our machine is completed with fine finishing in accordance with the quality standards of the industry.
Our strict quality management system maintains the excellent performance and quality of our products.
The product is the preferred one in the fields for its huge economic benefits.
