Product Details:
|
| Driven Mode: | Stepper Motor | Soldering Head: | 1 |
|---|---|---|---|
| Fixture: | Customized Made | Power: | 220/110V |
| Working Stroke: | 300(X)x300(Y)x80(Z) | Name: | Automatic PCB Soldering Machine |
| Highlight: | 0.4Mpa Robotic Soldering Machine,3 Axis Robotic Soldering Machine,Stepper Motor PCB Soldering Robot |
||

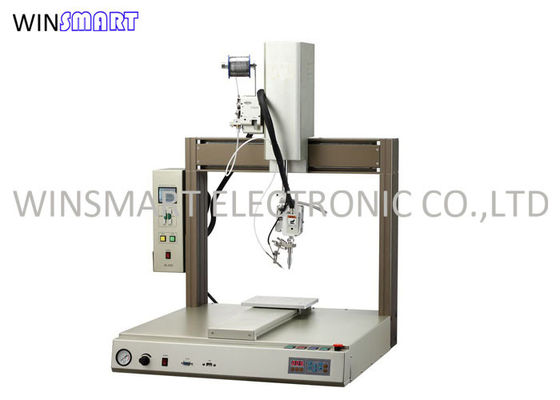

Automatic PCB Soldering Machine Robotic Welding Machine 3 Axis
Robotic Soldering Machine Overview:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Robotic Soldering Machine Features:
1. Perfect soldering process setting, with spot welding and welding function. Each instruction has independent preheating, tin length, preheating time, welding time, tinning time, lifting height and other solder parameters..
2. Perfect soldering process setting, with spot welding and drag welding function. Each instruction has independent preheating, solder wire length, preheating time, soldering time, tinning time, lifting height and other solder parameters.
3. Support PLT format files, realize direct importing for easier operation.
4. The machine can be run offline or independently, and the welding parameters are saved in the SD card to facilitate parameter copying and saving between devices.
5. 2G storage space, can store several soldering programs, each program supports 9999 soldering instructions.
6. There are two options for solder wire feeding, broken tin function, no broken tin function.
7. The display adopts 320x240 high-resolution color screen, English operation interface, easy to operate.
Robotic Soldering Machine Specifications:
| Model | SMTSR113 |
| Dimension | 880*700*830mm |
| Weight | 70Kg |
| Control | PLC |
| Programming | Teaching box |
| Driving mode | Stepper motor |
| Stroke | 300(X)x300(Y)x80(Z) |
| Soldering head | 1 |
| Repeatability | ±0.02mm(X/Y/Z) |
| Temp. Range | 0-500℃ |
| Solder Wire Spec | ￠0.3-1.6mm |
| Number of axes | 3 |
| Working pressure | 0.4~0.6Mpa(No water mist) |
| Power | AC110V/220V 300W |
| Display | LCD |
Robotic Soldering Machine Application:
Electronic circuit board, LED aluminum substrate, plug-in electronic components, wire soldering process, applicable to all kinds of products, replacement of fixtures, replacement of the iron head can be switched to apply.
1. Semiconductor Products
2. Optical products
3. Electronic Products
4. General home appliances
5. Precision Machines/Electrical Products
6. large-scale mechanical products
7. General Consumer Goods
Robotic Soldering Machine Key Parts:
HIWIN Rail Panasonics Motor
Germany Heater TaiWan Power Supply
Robotic Soldering Machine FAQ:
Q: What is soldering time?
A: About 2 seconds per point.
Q: What kind of soldering tips can you offer?
A: We could customize make suitable shape of soldering tip according to your application.
Q: What kind of heater?
A: Weller brand.
Q: Is it possible to change parameters for only one soldering point?
A: Yes, it is ok.
Q: How to improve soldering effect when trial soldering is not good?
A: It can be improved by solder wire feeding and soldering time adjustment.
