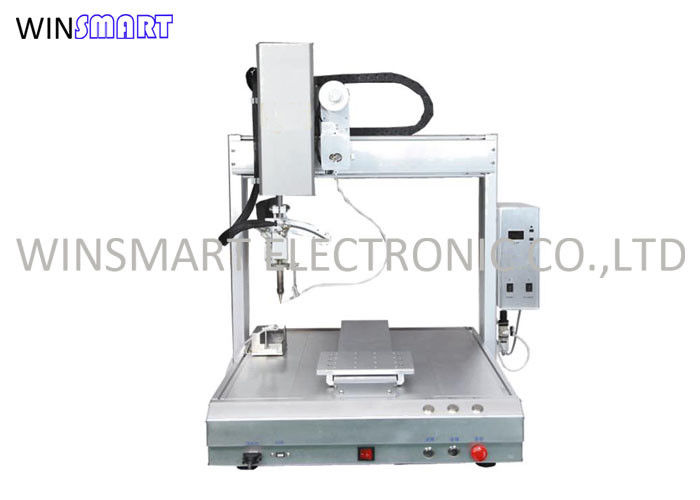

3 Axis Robotic Soldering Machine

3 Axis Robotic Soldering Machine
3 Axis Robotic Soldering Machine

Large Image :  3 Axis Robotic Soldering Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTSR113
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per month

3 Axis Robotic Soldering Machine

Driven Mode: Stepper Motor Soldering Head: 1
Axis: 3 Control: PLC
Working Stroke: 300(X)x300(Y)x80(Z) Name: Robotic Soldering Machine
High Light:

3 Axis Robotic Soldering Machine


PLC Robotic Soldering Machine


0.02mm PCB Soldering Machine

Automatic Robotic Soldering Machine Soldering Robot for PCB Manufacturing



Robotic Soldering Machine Overview:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.


Robotic Soldering Machine Description:

1. Multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),to achieve the 3D space arbitrary solder accurate location.
2. The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job.
3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and professional requirements, the realization of human editing operations.
4. Various of welding way, support spot welding and drag welding, all parameters is setted up by user,meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved together with welding point coordinates, achieve flexible soldering.
5. Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions. Intelligent main control program realizes automation and intelligence


Robotic Soldering Machine Features:

1. Perfect soldering process setting, with spot welding and welding function. Each instruction has independent preheating, tin length, preheating time, welding time, tinning time, lifting height and other solder parameters..

2. Perfect soldering process setting, with spot welding and drag welding function. Each instruction has independent preheating, solder wire length, preheating time, soldering time, tinning time, lifting height and other solder parameters.

3. Support PLT format files, realize direct importing for easier operation.

4. The machine can be run offline or independently, and the welding parameters are saved in the SD card to facilitate parameter copying and saving between devices.

5. 2G storage space, can store several soldering programs, each program supports 9999 soldering instructions.

6. There are two options for solder wire feeding, broken tin function, no broken tin function.

7. The display adopts 320x240 high-resolution color screen, English operation interface, easy to operate.


Robotic Soldering Machine Specifications:

Model SMTSR113
Dimension 880*700*830mm
Weight 70Kg
Control PLC
Programming Teaching box
Driving mode Stepper motor
Stroke 300(X)x300(Y)x80(Z)
Soldering head 1
Repeatability ±0.02mm(X/Y/Z)
Temp. Range 0-500℃
Solder Wire Spec ¢0.3-1.6mm
Number of axes 3
Working pressure 0.4~0.6Mpa(No water mist)
Power AC110V/220V 300W
Display LCD


Robotic Soldering Machine Key Parts:

3 Axis Robotic Soldering Machine 0 3 Axis Robotic Soldering Machine 1

          HIWIN Rail                                                                                               Panasonics Motor


3 Axis Robotic Soldering Machine 2       3 Axis Robotic Soldering Machine 3

    Germany Heater                                                                                      TaiWan Power Supply


Robotic Soldering Machine FAQ:

Q: What is soldering time?

A: About 2 seconds per point.

Q: What kind of soldering tips can you offer?

A: We could customize make suitable shape of soldering tip according to your application.

Q: What kind of heater?

A: Weller brand.

Q: Is it possible to change parameters for only one soldering point?

A: Yes, it is ok.

Q: How to improve soldering effect when trial soldering is not good?

A: It can be improved by solder wire feeding and soldering time adjustment.
