Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder

Brand Name:	Winsmart
Model Number:	PM0409
MOQ:	1 PC
Price:	USD1-100/Set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Plastic

Size:

355x320x563mm

Temp.:

80°C(Optional 120°C And 150°C)

Usage:

PCB Storage

Condition:

Name:

Plastic PCB Magazine Rack

Supply Ability:

5000 sets per month

Highlight:

PCB Magazine Rack Antistatic

Plastic PCB Magazine Rack

PCB Magazine Rack PCB Holder

Product Description

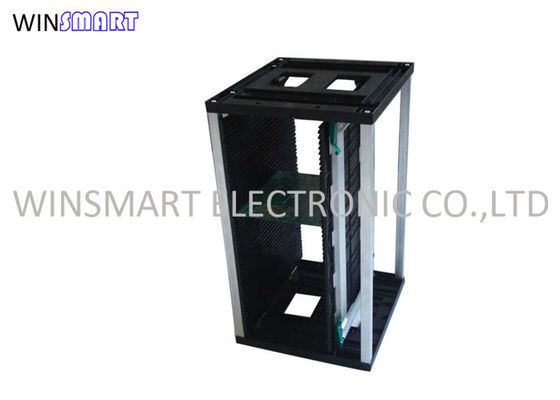

Plastic Top Bottom SMT Antistatic ESD Plastic PCB Magazine Rack 355*320*563mm

ESD PCB Magainze Rack Dimensions Introduction:

1. Dimension: 355x320x563mm, storing 50pcs of 350x(50-250)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

2. Dimension: 355x315x580mm, storing 50pcs of 350x(80-250)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

3. Dimension: 460x400x563mm, storing 50pcs of 460x(100-330)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

4. Dimension: 535x460x570mm, storing 50pcs of 535x(50-390)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

5. Dimension: 535x530x570mm, storing 50pcs of 535x(50-460)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

ESD PCB Magazine Rack Specification:

Name	ESD PCB Magazine Rack
Surface resistance	104~106 Ω
Overall size	355x320x563mm
Storage capacity	50pcs
PCB Spec	L355xW(50-250)mm
Side guide slot	depth 3.5mm, width 5mm, pitch 10mm
Heat resistant	80°C/120°C/200 °C
Ref. Position	A=34mm, B=34mm
Materials	Aluminum + steel

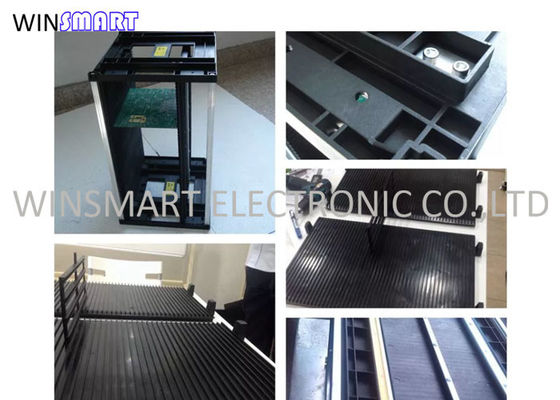

ESD PCB Magazine Rack Details:

Plastic Top Bottom PCB Magazine Rack Antistatic For PCB Holder 0

ESD PCB Magazine Rack Package:

Tags:

SMT ESD Magazine Rack

Adjustable ESD Magazine Rack

L Size Pcb Storage Rack
