Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB

Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB
Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB

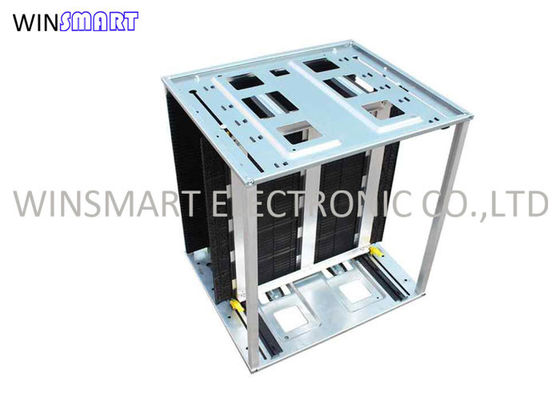

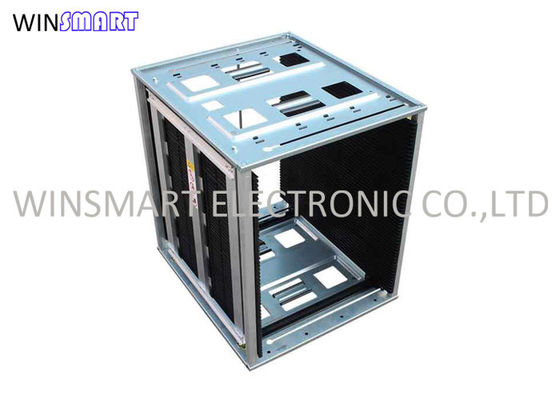

Large Image :  Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: PM0601
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD1-100/Set
Packaging Details: Plywood case
Delivery Time: 7-14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sets per month

Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB

Description
Size: 535x460x570mm Temp.: 80°C(Standard)
ESD: Yes Pitch: 10mm
Delivery: 7 Days Name: PCB SMT Magazine
Highlight:

Winsmart Esd Pcb Rack

,

Esd Pcb Rack High Precision

,

Esd Pcb Rack For Large PCB

ESD Anti-Static PCB SMT Magazine 535x460x570mm Metal Base For Large PCB



PCB Magazine Rack Description:
Precision, stablity and flexible handling are importatnt feature for the use of PCB magazines in automated assembly lines. The stable and robust frame construction guaranteed a long lasting use of the ESD magazine rack in your production line.

PCB Magazine Rack Specification:

Contour Size(L*W*H)mm Slot of side plate PCB board use standard
Depth Width Pitch Adjustable PCB Stored

535×460×570
3mm 5mm 10mm (50-460)mm 50
Adjustment Method Side Plate Base Materialt Weight

Handle Adjustable

Screw adjustable

Five Pieces Assembled Metal 12.3kg
Temperature: 80ºC is only fittable to PCB board temperature.
Surface Resistance
Dissipative Type 1.0×10E4Ω~1.0×10E8Ω





PCB Magazine Installation:

Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB 0

PCB Magazine Rack Details:

Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB 1

Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB 2

Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB 3Winsmart Esd Pcb Rack High Precision Long Lasting For Large PCB 4
